YG、YGEJ系列三相异步电动机

YG系列辊道用三相异步电动机

YG SERIES THREE PHASE ASYNCHRONOUS MOTOR USED IN THE ROLLER WAY

YGEJ系列辊道用制动三相异步电动机

YGEJ SERIES THREE PHASE ASYNCHRONOUS MOTOR WITH BRAKE USED IN THE ROLLER WAY

　　YG系列辊道用三相异步电动机采用封闭自冷式结构,是取代JG2系列电动机的更新换代产品。YG系列电动机按用途可分为YGa和YGb两种型式，YGa型电动机具有堵转转矩大、动态常数高、机械特性软的特点，能够频繁起动、制动和反转运行，适用于单独拖动冶金工业的工作辊道辊子。YGb型电动机具有功率大、效率高、机械特性硬的特点，通常只有单向运转，适用于单独动冶金工业的传动辊子。

　　YG系列电动机额定电压380V，额定频率50Hz，电机采用Y接法，可以满压起动。在保持电压与频率成正比变化的条件下，YGa型电动机允许在40Hz~70Hz范围内使用（但堵转转矩和动态常数随频率变化而变化），YGb型电动机可以在10Hz~70Hz频率范围内作恒转矩调速运行。YG系列电动机安装尺寸符合IEC标准，外壳防护等级为IP54，冷却方式为IC0041。YGa型电动机采用H级绝缘，YGb型电动机中心高112mm~200mm，采用F级绝缘，中心高225mm采用H级绝缘。YGa型电动机主要用于断续工作制，按表1中的堵转转矩和相应于一定的负载持续率进行选用，负载持续率FC表示，分为15%、25%、40%、60%四种，其中40%为基准定额。YGb型电动机主要用于连续工作制，按表2的额定功率选用。

　　YGEJ系列电动机是由YG系列电动机附加交流制动器组合而成。交流制动器无整流二极管，由三相380V电源直接供电，具有运行可靠，使用寿命长，制动速度快，定位准确，制动力矩可以从零调到需要值等优点。

　　该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。

　　本系列变频电机可制成直联式结构，安装型式和尺寸参见直联式安装表

　　本系列变频电机可以按用户提供的图纸设计并制造。

YG Series 3-Phase Asynchronous Motor Used in the Roller Way adopts the self cooling construction, which replaced the pervious generation of JG2 series motors. This series motor can be divided into two sub-models, namely, YGa and YGb according to their usage. The YGa series motor is suitable for driving roller of the roller way in the metallurgical industry，as it has a large braking torque, high dynamic constant, soft mechanical performance, and suitable for frequently starting, stopping and inverting capacity. The YGb is used for driving the conveying roller in single direction in the metallurgical industry, due to it features large power, high efficiency and hard mechanical performance.

YG series motor is capable to start under normal voltage condition; therefore it is not necessary to reduce starting voltage, eg. It can be started at 380V and 50Hz. Under condition of the voltage changing in the positive proportion to the frequency, the YGa series motor is allowed to operate freely at range from 40Hz to 70Hz, while the braking torque and dynamic constant varying correspondent to the change of the frequency. The YGb series motor is capable to operate in variable speed and constant torque within the frequency range of 10Hz to 70Hz.

The mounting dimension of the YG series motor meets the IEC Standard. The protection for its outside layer is IP54, and cooling method is IC041. YGa adopts Class H insulation. However, YGb uses Class F insulation for frame height between 112mm to 200mm while Class H insulation for frame height of 225mm.

YGa series motor mainly operates non-continuous duty. Its duty cycle can be selected from one of duties corresponding to the braking torque shown in the table below. The ratio of duty cycle is represented as FC. It can be specified in 15%, 25%, 40% and 60%, among those ratio 40% is considered as the basic cycle. YGb series motor mostly operates under continuous duty. The selection of its duty cycle demonstrated in the table below.

Compared with YG Series 3-Phase Asynchronous Motor Used in the Roller Way, YGEJ Series 3-Phase Asynchronous Motor with Brake Used in the Roller Way has the same features and functions as YG series motors, but it is added a build-in AC brake. The AC brake is powered directly from a three phase power supply without rectified diodes. The AC brakes are not only quick response braking (100 times quicker than a DC single phase brake) but also have improved reliability and long service life. The advantages of AC brakes also include precise positioning, such as no axial movements, and the capability of a wide adjustable range of braking torque, such as from zero (0) to any desired values. The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.

Above series motors are available in the direct connection between the motor and the gearbox. Please refer to tables below for details.

These series motors can be customized designed and produced to meet your request.

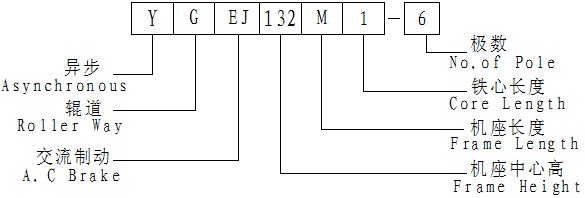

型号说明:TypeDesignation

Tag:变频电机变频电动机异步电动机 YG-YGEJ系列三相异步电动机

　YZTSE系列起重机YPYE系列印刷机专用变频主电机　

YGa、YGaEJ系列辊道用三相异步电动机技术参数 Data for YGa, YGaEJ Series 3-phase Asynchronous Motor

机座号 Frame Size	堵转转矩 Locked Torque (N.m)	堵转电流 Locke Current (A)	同步转速 Speed (r/min)	动态常数 Dynamic Constant				转动惯量 Moment of Inertla (Kg.m2)	YGaEJ 制动力矩 Braking Torque (N.m)	重量Weight (Kg)
机座号 Frame Size	堵转转矩 Locked Torque (N.m)	堵转电流 Locke Current (A)	同步转速 Speed (r/min)	FC=15%	FC=25%	FC=40%	FC=60%	转动惯量 Moment of Inertla (Kg.m2)	YGaEJ 制动力矩 Braking Torque (N.m)	YGa	YGaEJ
YGa、YGaEJ112L1-4	22	13	1500	94	92	90	86	0.0104	35	57	67
YGa、YGaEJ112L2-4	36	19	1500	140	135	130	125	0.015	35	66	76
YGa、YGaEJ112L1-6	22	8.5	1000	215	210	205	200	0.0104	35	57	67
YGa、YGaEJ112L2-6	34	12	1000	290	285	280	270	0.015	35	66	76
YGa、YGaEJ132M1-6	50	18	1000	315	310	300	290	0.028	45	90	105
YGa、YGaEJ132M2-6	71	23	1000	390	380	375	360	0.0365	45	98	113
YGa、YGaEJ112L1-8	17	5.6	750	350	345	335	320	0.0104	35	57	67
YGa、YGaEJ112L2-8	28	9	750	495	485	470	450	0.015	35	66	76
YGa、YGaEJ132M1-8	42	12	750	530	520	510	480	0.028	45	90	105
YGa、YGaEJ132M2-8	60	17	750	670	655	640	605	0.0365	45	97	112
YGa、YGaEJ160S1-8	80	22	750	810	790	770	730	0.116	85	131	151
YGa、YGaEJ160S2-8	110	30	750	1010	990	950	910	0.151	85	142	162
YGa、YGaEJ160L1-8	150	40	750	1230	1200	1160	1110	0.202	85	172	192
YGa、YGaEJ160L2-8	210	55	750	1470	1430	1380	1310	0.265	85	190	210
YGa、YGaEJ180L1-8	280	67	750	1640	1600	1560	1460	0.36	130	229	254
YGa、YGaEJ112L1-10	16	45	600	520	510	490	465	0.014	35	57	69
YGa、YGaEJ12L2-10	25	7.1	600	700	685	660	625	0.015	35	66	76
YGa、YGaEJ132M1-10	38	9	600	790	770	740	700	0.028	45	90	105
YGa、YGaEJ132M2-10	56	13	600	990	970	930	880	0.0365	45	97	112
YGa、YGaEJ160S1-10	80	18	600	1220	1190	1150	1090	0.116	85	130	150
YGa、YGaEJ160S2-10	110	24	600	1470	1440	1380	1300	0.151	85	141	161
YGa、YGaEJ160L1-10	150	31	600	1880	1830	1760	1670	0.202	85	172	192
YGa、YGaEJ160L2-10	200	40	600	2260	2200	2120	2000	0.265	85	188	214
YGa、YGaEJ180L1-10	250	48	600	2500	2440	2350	2220	0.36	85	229	254
YGa、YGaEJ180L2-10	320	60	600	2880	2810	2690	2530	0.435	130	252	277
YGa、YGaEJ200L1-10	400	75	600	3260	3180	3050	2880	0.65	130	302	332
YGa、YGaEJ200L2-10	500	95	600	3790	3690	3530	3320	0.8	210	337	367
YGa、YGaEJ225M1-10	630	125	600	3870	3740	3550	3280	0.96	210	410	445
YGa、YGaEJ225M2-10	800	150	600	4440	4290	4050	3740	1.16	280	445	480
YGa、YGaEJ112L2-12	22	5.6	500	1060	1030	990	930	0.015	35	66	67
YGa、YGaEJ132M1-12	36	8	500	1130	1090	1050	990	0.028	45	90	105
YGa、YGaEJ132M2-12	53	11	500	1400	1360	1300	1220	0.0365	45	97	112
YGa、YGaEJ160S1-12	75	15	500	1670	1620	1550	1440	0.116	85	131	151
YGa、YGaEJ160S2-12	105	20	500	2060	2000	1910	1780	0.151	85	141	161
YGa、YGaEJ160L1-12	140	26	500	2590	2510	2400	2230	0.202	85	172	192
YGa、YGaEJ160L2-12	190	34	500	3120	3020	2880	2680	0.265	85	188	208
YGa、YGaEJ180L1-12	250	42	500	3600	3500	3340	3130	0.36	130	229	254
YGa、YGaEJ180L2-12	320	53	500	4180	4050	3860	3610	0.435	130	252	277
YGa、YGaEJ200L1-12	400	63	500	4650	4500	4290	4010	0.65	210	302	332
YGa、YGaEJ200L2-12	500	80	500	5470	5300	5040	4700	0.8	210	337	367
YGa、YGaEJ225M1-12	630	100	500	5550	5350	5050	4650	0.96	280	410	445
YGa、YGaEJ225M2-12	800	130	500	6330	6080	5710	5220	1.16	280	445	490
YGa、YGaEJ160S1-16	50	9.5	375	2770	2660	2500	2290	0.116	85	130	150
YGa、YGaEJ160S2-16	75	13	375	3390	3250	3050	2770	0.151	85	141	161
YGa、YGaEJ160L1-16	105	18	375	4340	4160	3990	3540	0.202	85	173	193
YGa、YGaEJ160L2-16	140	24	375	5170	4950	4640	4180	0.265	85	188	208
YGa、YGaEJ180L1-16	190	30	375	5850	5610	5270	4800	0.36	130	229	254
YGa、YGaEJ180L2-16	250	38	375	6950	6670	6260	5710	0.435	130	252	277
YGa、YGaEJ200L1-16	320	50	375	7890	7580	7100	6490	0.65	210	302	332
YGa、YGaEJ200L2-16	420	63	375	9100	8710	8100	7370	0.8	210	337	367
YGa、YGaEJ225M1-16	530	80	375	9380	8950	8310	7460	0.96	280	410	445
YGa、YGaEJ225M2-16	670	100	375	10770	10250	9460	8400	1.16	280	445	480
YGa、YGaEJ200L1-20	250	36	300	11210	10630	9750	8590	0.65	210	302	332
YGa、YGaEJ200L2-20	340	48	300	12980	12250	11150	9690	0.8	210	337	367
YGa、YGaEJ225M1-20	450	63	300	13830	12990	11760	10050	0.96	280	410	445
YGa、YGaEJ225M2-20	560	75	300	15750	14760	13300	11280	1.16	280	445	490

YGa、YGaEJ系列辊道用三相异步电动机技术参数 Data for YGa, YGaEJ Series 3-phase Asynchronous Motor

机座号 Frame Size	额定功率 Rated Power (KW)	在额定功率时 Rated Power		堵转转矩 Locked Torque (N.m)	堵转电流 Locked Current (A)	转动惯量 Moment of Inertla (Kg.m2)	YGbEJ 制动力矩 Braking Torque (N.m)	重量 Weight (Kg)
机座号 Frame Size	额定功率 Rated Power (KW)	转速 Speed (r/min)	电流 Current (A)	堵转转矩 Locked Torque (N.m)	堵转电流 Locked Current (A)	转动惯量 Moment of Inertla (Kg.m2)	YGbEJ 制动力矩 Braking Torque (N.m)	YGb	YGbEJ
YGb、YGbEJ112L1-4	1.2	1410	2.6	20	14.7	0.0104	35	57	67
YGb、YGbEJ112L2-4	1.8	1410	3.7	32	22.5	0.015	35	66	76
YGb、YGbEJ112L1-6	0.85	930	2.14	20	10.2	0.0104	35	57	67
YGb、YGbEJ112L2-6	1.25	930	2.3	28	14.8	0.015	35	66	76
YGb、YGbEJ132M1-6	1.8	935	4.06	42	21.1	0.028	85	90	105
YGb、YGbEJ132M2-6	2.4	935	5.27	60	28.2	0.0365	85	98	113
YGb、YGbEJ112L1-8	0.5	690	1.66	15	6.4	0.0104	35	57	67
YGb、YGbEJ112L2-8	0.85	690	2.6	25	10.4	0.015	35	66	76
YGb、YGbEJ132M1-8	1.25	690	3.36	36	14.2	0.028	45	90	105
YGb、YGbEJ132M2-8	1.8	690	4.64	53	20	0.0365	45	97	112
YGb、YGbEJ160S1-8	2.5	690	6.16	71	26.4	0.116	85	131	151
YGb、YGbEJ160S2-8	3.4	690	8.18	100	36.2	0.151	85	142	162
YGb、YGbEJ160L1-8	4.5	690	10.7	140	48.1	0.202	85	172	192
YGb、YGbEJ160L2-8	5.6	690	13.5	190	67.1	0.265	85	190	210
YGb、YGbEJ180L1-8	6.7	700	15.3	240	81.2	0.36	130	229	254
YGb、YGbEJ180L2-8	8	700	18.4	300	101.5	0.435	130	252	279
YGb、YGbEJ112L1-10	0.36	550	1.62	13	5	0.0104	35	57	67
YGb、YGbEJ112L2-10	0.53	550	2.34	20	7.4	0.015	35	66	76
YGb、YGbEJ132M1-10	0.85	550	2.91	30	10.4	0.028	45	90	105
YGb、YGbEJ132M2-10	1.25	550	4.04	45	14.7	0.0365	45	97	112
YGb、YGbEJ160S1-10	1.8	550	5.48	63	21	0.116	85	130	150
YGb、YGbEJ160S2-10	2.4	550	7.05	90	28	0.151	85	141	161
YGb、YGbEJ160L1-10	3.2	550	9.19	120	36.1	0.202	85	172	192
YGb、YGbEJ160L2-10	4.2	550	11.9	160	47.1	0.265	85	188	208
YGb、YGbEJ180L1-10	5.3	550	13.9	200	58.3	0.36	130	229	254
YGb、YGbEJ180L2-10	6.7	550	17.7	250	77.5	0.435	130	252	277
YGb、YGbEJ200L1-10	8.5	550	21.3	320	90.2	0.65	210	302	332
YGb、YGbEJ200L2-10	10.5	550	26.3	400	115	0.8	210	337	367
YGb、YGbEJ225M1-10	13	555	32.3	480	143.5	0.96	280	410	445
YGb、YGbEJ225M2-10	16	555	39.5	600	176.7	1.16	280	445	490
YGb、YGbEJ112L1-12	0.3	440	1.57	12	4.1	0.0104	35	57	67
YGb、YGbEJ112L2-12	0.45	440	2.26	18	6.2	0.015	35	66	76
YGb、YGbEJ132M1-12	0.63	450	2.76	26	8.6	0.028	45	90	105
YGb、YGbEJ132M2-12	0.95	450	3.88	38	12.2	0.0365	45	97	112
YGb、YGbEJ160S1-12	1.3	455	5.1	56	16.9	0.116	85	131	151
YGb、YGbEJ160S2-12	1.8	455	6.69	80	22.4	0.151	85	141	161
YGb、YGbEJ160L1-12	2.6	455	9.15	110	30.5	0.202	85	172	192
YGb、YGbEJ160L2-12	3.4	455	11.8	150	40	0.265	85	188	208
YGb、YGbEJ180L1-12	4.2	460	13.5	200	51.4	0.36	130	229	254
YGb、YGbEJ180L2-12	5	460	16.3	260	64.4	0.435	130	252	272
YGb、YGbEJ200L1-12	6.3	460	19.4	320	78.1	0.65	210	302	332
YGb、YGbEJ200L2-12	8	460	24.4	400	98.9	0.8	210	337	367
YGb、YGbEJ225M1-12	10	460	29.6	480	119.4	0.96	280	410	445
YGb、YGbEJ225M2-12	12.5	460	37.3	600	153.9	1.16	280	445	495
YGb、YGbEJ132M1-16	0.36	325	2.6	20	6.3	0.028	45	90	105
YGb、YGbEJ132M2-16	0.5	325	3.44	30	8.6	0.365	45	97	112
YGb、YGbEJ160S1-16	0.71	335	4.46	42	11.8	0.116	85	130	150
YGb、YGbEJ160S2-16	1	335	6.09	60	16.5	0.151	85	141	161
YGb、YGbEJ160L1-16	1.5	335	8.44	80	23	0.202	85	173	193
YGb、YGbEJ160L2-16	2	335	10.8	110	29.3	0.265	85	188	208
YGb、YGbEJ180L1-16	2.5	340	12.3	150	36.8	0.36	130	229	254
YGb、YGbEJ180L2-16	3	340	15.2	190	46.3	0.435	130	252	277
YGb、YGbEJ200L1-16	4.2	345	19.1	250	59.3	0.65	210	302	332
YGb、YGbEJ200L2-16	5.3	345	23.9	320	75.1	0.8	210	337	367
YGb、YGbEJ225M1-16	6.7	345	28.7	400	90.9	0.96	280	410	445
YGb、YGbEJ225M2-16	8.5	345	36.7	530	117.3	1.16	280	445	480
YGb、YGbEJ180L2-20	1.4	275	14.1	130	36.7	0.435	130	252	277
YGb、YGbEJ200L1-20	2.2	270	17.4	180	45.9	0.65	210	302	332
YGb、YGbEJ200L2-20	3.2	270	22.6	250	59.4	0.8	210	337	367
YGb、YGbEJ225M1-20	4.2	275	29.5	340	79.7	0.96	280	410	445
YGb、YGbEJ225M2-20	5.3	275	35.6	420	96	1.16	280	445	490

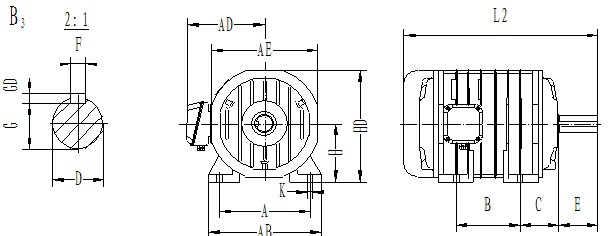

YG、YGEJ外形及安装尺寸图 Outline and Mounting Dimensions for YG ,YGEJ

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)										外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	A	B	C	D	E	F	G	GD	H	K	AB	AE	AD	HD	L2
112L	190	159	70	32	80	10	27	8	112	φ12	250	245	205	240	535
132M	216	178	89	38	80	10	33	8	132	φ12	275	285	220	265	595
160M	254	210	108	48	110	14	42.5	9	160	φ15	315	315	250	320	680
160L	254	254	108	48	110	14	42.5	9	160	φ15	315	315	250	320	800
180L	279	279	121	55	110	16	49	10	180	φ15	360	360	295	365	850
200L	318	305	133	65	140	18	58	11	200	φ19	415	415	320	415	910
225M	356	311	149	75	140	20	67.5	12	225	φ19	470	470	335	465	975

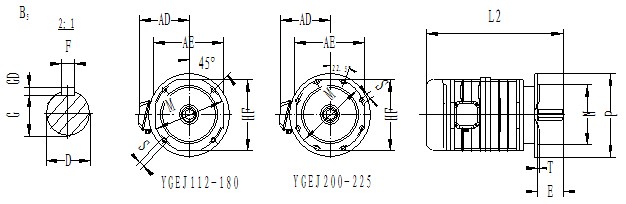

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)										外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	D	E	F	G	GD	M	N	P	S	T	AE	AD	HF	L2
112L	32	80	10	27	8	215	180	250	15	4	240	205	240	535
132M	386	80	10	33	8	265	230	300	15	4	265	220	285	595
160S	48	110	14	42.5	9	300	250	350	19	5	315	250	335	680
160L	48	110	14	42.5	9	300	250	350	19	5	315	250	335	800
180L	55	110	16	49	10	300	250	350	19	5	360	295	355	850
200L	65	140	18	58	11	400	350	450	19	5	415	320	450	910
225M	75	140	20	67.5	12	400	350	450	19	5	470	335	465	975

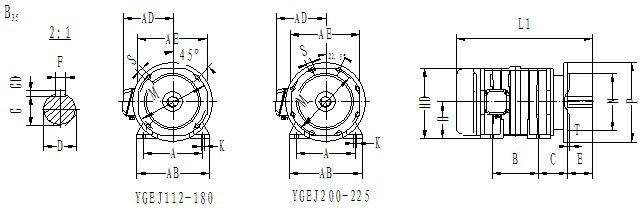

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	A	B	C	D	E	F	G	GD	H	K	M	N	P	S	T	AB	AE	AD	HD	L1
112L	190	159	70	32	80	10	27	8	112	12	215	180	250	15	4	235	240	205	240	445
132M	216	178	89	38	80	10	33	8	132	12	265	230	300	15	4	265	265	220	290	495
160S	254	178	108	48	110	14	42.5	9	160	15	300	250	350	19	5	315	315	250	345	570
160L	254	254	108	48	110	14	42.5	9	160	15	300	250	350	19	5	315	315	250	345	690
180L	279	279	121	55	110	16	49	10	180	15	300	250	350	19	5	350	360	295	365	730
200L	318	305	133	65	140	18	58	11	200	19	400	350	450	19	5	415	415	320	430	780
225M	356	311	149	75	140	20	68	12	225	19	400	350	450	19	5	470	470	335	465	835

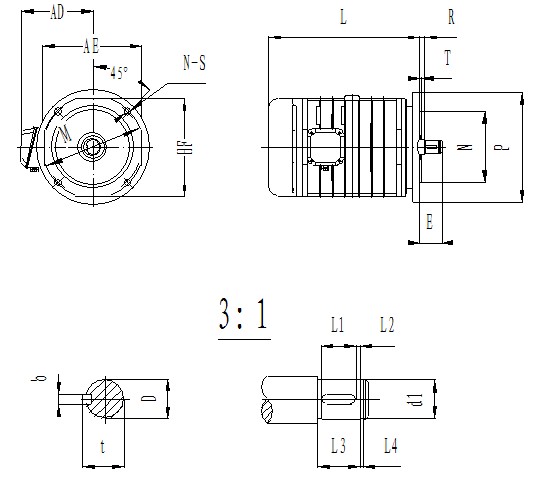

YG、YGEJ直联式外形及安装尺寸图 (1) Mounting Dimension and Data for YG, YGEJ Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (1)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outling Dimensions (mm)
	D	E	b	t	L1	L2	L3	L4	d1	R	T	M	N	P	N-S	AE	AD	HF	L
	D	E	b	t	L1	L2	L3	L4	d1	R	T	M	N	P	N-S	AE	AD	HF	YG	YGEJ
112	28	53	8	31	20	1.5	23	1.3	26.6	26	3.5	165	130	200	4-φ11	240	205	240	380	470
132	32	63	10	35	25	2	29	1.3	30.3	28	4	215	180	250	4-φ13.5	265	220	285	430	530
160	38	72	12	41	30	2.2	35	1.7	36	31	4	265	230	300	4-φ13.5	315	250	335	595	705
180	48	86	14	51.5	40	1	42	1.7	45.5	37	5	300	250	350	4-φ17.5	360	295	355	635	755
200	55	94	16	59	45	2.5	50	2.2	52	36	5	350	300	400	8-φ17.5	415	320	450	655	785
225	55	94	16	59	45	2.5	50	2.2	52	36	5	400	350	450	6-φ22	470	335	465	710	850

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

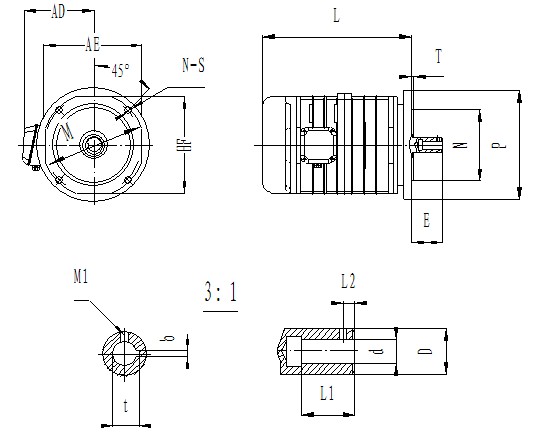

YG、YGEJ直联式外形及安装尺寸图 (2) Mounting Dimension and Data for YG, YGEJ Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (2)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)													外形尺寸 Outling Dimensions (mm)
	D	d	b	t	L2	L1	M1	E	T	M	N	P	N-S	AE	AD	HF	L
	D	d	b	t	L2	L1	M1	E	T	M	N	P	N-S	AE	AD	HF	YG	YGEJ
112	45	22	8	25.3	8	26	5	53	3.5	165	130	200	4-φ11	240	205	240	380	470
132	55	28	8	31.3	10	32	5	63	4	215	180	250	4-φ13.5	265	220	285	430	530
160	65	32	10	35.3	10	36	6	72	4	265	230	300	4-φ13.5	315	250	335	595	705
180	70	38	12	41.3	10	47	6	86	5	300	250	350	4-φ17.5	360	295	355	635	755
200	85	48	14	51.8	15	55	8	94	5	350	300	400	6-φ17.5	415	320	450	655	785
225	85	48	14	51.8	15	55	8	94	5	400	350	450	6-φ22	470	335	465	710	850

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

地址：上海市沪杭公路1595号　邮编：201401　电话：86-021-67106170　手机：13801676003
联系人：练先生　邮箱：tongtailjy@sina.com　传真：86-021-67106169
