YZ系列三相异步电动机

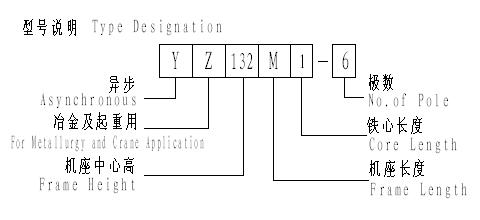

YZ系列冶金及起重用三相异步电动机
YZ SERIES THREE PHASE ASYNCHRONOUS MOTOR FOR METALLURGY AND CRANE APPLICATIONS

　　YZ系列冶金及起重用三相异步电动机，具有过载能力大和机械强度高的特点，适用于驱动各种类型的冶金及起重机械或其他类似设备。

　　本系列变频电机可制成直联式结构，安装型式和尺寸参见直联式安装表。

　　本系列变频电机可以按用户提供的图纸设计并制造。

YZ Series 3-phase Asynchronous Motor for Metallurgy and Crane Applications is for the various types of metallurgy and crane applications. The motor is approved to be capable for the large overload, be durable and has high mechanical strength. It is the basic model.

The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.

Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.

The motor can be customized designed and produced to meet your request.

TAG:电动机变频电机异步电动机

　YZPZE系列变频电机YZYE系列起重机运行电机　

YZ系列冶金及起重用三相异步电动机技术参数Data for YZ Series 3-phase Asynchronous Motor

工作方式 Duty type	S3
工作方式 Duty type	每小时起动6次 6 Starts per Hour
CDF	15%			25%			40%								60%			100%
项目 ltem	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	最大转矩 Max. Torque 额定转矩Rated Torque	堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power factor	额定功率Rated Output	额定电流 Rated Current	转速Speed	额定功率Rated Output	额定电流 Rated Current	转速Speed
机座号 Frame Size	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	最大转矩 Max. Torque 额定转矩Rated Torque	堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power factor	额定功率Rated Output	额定电流 Rated Current	转速Speed	额定功率Rated Output	额定电流 Rated Current	转速Speed
机座号 Frame Size	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)				(%)	(cosφ)	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)
	1500r/min
801	0.77	2.2	1320	0.66	1.8	1390	0.55	1.6	1395	2.2	2.1	4.2	65	0.7	0.4	1.4	1446	0.3	0.7	1465
802	1.1	2.5	1325	0.9	2.3	1440	0.75	2.1	1442	2.2	2.3	4.3	67	0.72	0.55	1.9	1450	0.4	0.92	1460
90S	1.5	4	1330	1.3	3	1420	1.1	2.7	1420	2.5	2.7	4.7	66	0.7	0.77	2.6	1442	0.6	1.6	1455
90L	2.2	5.5	1425	1.8	4.4	1438	1.5	3.7	1425	2.4	2.6	4.6	70	0.71	1.1	3	1442	0.8	2.3	1455
100L1	3	7	1428	2.6	6	1425	2.2	5	1427	2.2	2.1	4.9	72	0.72	1.5	4	1445	1.1	2.5	1458
100L2	4	9	1430	3.6	8	1438	3	6.8	1440	2.4	2.2	4.8	74	0.73	2.1	4.5	1448	1.5	3.3	1458
112M	5.5	11	1435	4.8	10	1445	4	8.8	1445	2.4	2.2	5.1	78	0.76	2.8	4.7	1452	2.1	4.5	1462
132S	7.6	15	1440	6.6	13	1450	5.5	11.5	1448	2.5	2.4	5.4	80	0.81	3.8	7.8	1455	3	5.8	1466
132M	11	21	1440	9	18	1442	7.5	15	1450	2.5	2.6	5.8	83	0.82	5.5	10	1458	4	4.7	1463
160M	16	31	1440	13	25	1442	11	22	1450	2.5	2.6	5.8	83	0.82	8	16	1458	5.5	11	1463
160L	21	42	1440	18	36	1442	15	30	1455	2.5	2.6	4.5	83.5	0.825	11	22	1458	8	16	1463

YZ系列冶金及起重用三相异步电动机技术参数Data for YZ Series 3-phase Asynchronous Motor

工作方式 Duty type	S3
工作方式 Duty type	每小时起动6次 6 Starts per Hour
CDF	15%			25%			40%								60%			100%
项目 ltem	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	最大转矩 Max. Torque 额定转矩Rated Torque	堵转转矩Starting Torque 额定转矩Rated Torque	堵转电流Starting Current 额定电流Rated Torque	效率Eff	功率因素Power Factor	额定功率Rated Output	额定电流 Rated Current	转速 Speed	额定功率Rated Output	额定电流 Rated Current	转速Speed
机座号 Frame Size	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	最大转矩 Max. Torque 额定转矩Rated Torque	堵转转矩Starting Torque 额定转矩Rated Torque	堵转电流Starting Current 额定电流Rated Torque	效率Eff	功率因素Power Factor	额定功率Rated Output	额定电流 Rated Current	转速 Speed	额定功率Rated Output	额定电流 Rated Current	转速Speed
机座号 Frame Size	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)				(%)	(cosφ)	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)
	1000 r/min
112M	2.2	6.5	810	1.8	4.9	892	1.5	4.25	920	2.7	2.44	4.47	69.5	0.77	1.1	2.7	946	0.8	3.5	980
132M1	3	7.5	804	2.5	6.5	920	2.2	5.9	935	2.9	3.1	5.16	75	0.75	1.8	5.3	950	1.5	4.9	960
132M2	5	11.6	890	4	9.2	915	3.7	8.8	912	2.8	3	5.54	79	0.79	3	7.5	940	2.8	7.2	945
160M1	7.5	16.8	903	6.3	4.1	922	5.5	12.5	933	2.7	2.5	4.9	80.6	0.83	5	11.5	940	4	10	953
160M2	11	25.4	926	8.5	18	943	7.5	15.9	948	2.9	2.4	5.52	83	0.86	6.3	14.2	956	5.5	13	961
160L	15	32	920	13	28.7	936	11	24.6	953	2.9	2.7	6.17	84	0.85	9	20.6	964	2.5	18.8	972
	750 r/min
160L	11	27.4	675	9	21.1	694	7.5	18	705	2.7	2.5	5.1	82.4	0.77	8	15.6	717	5	14.2	724
180L	15	35.3	654	13	30	675	11	25.8	694	2.5	2.6	4.9	80.9	0.81	9	21.5	710	7.5	19.2	718
200L	22	47.5	686	18.5	40	697	15	33.1	710	2.8	2.7	6.1	86.2	0.8	13	28.1	715	11	26	720
225M	33	69	687	26	53.5	701	22	45.8	712	2.9	2.9	6.2	87.2	0.83	18.5	40	718	17	37.5	720
250M	42	89	663	35	74	681	30	63.3	694	2.54	2.7	5.47	85.7	0.84	26	56	702	22	45	717

YZ系列冶金及起重用三相异步电动机技术参数Data for YZ Series 3-phase Asynchronous Motor

工作方式 Dutytype	S2
工作方式 Dutytype	S2
CDF	30分钟 30 Minutes			60分钟 60 Minutes
项目 Item	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
机座号 Frame Size	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
1500r/min
801	0.66	1.8	1390	0.55	1.6	1395
802	0.9	2.3	1440	0.75	2.1	1400
90S	1.3	2.8	1420	1.1	2.7	1420
90L	1.8	3.3	1438	1.5	3.7	1425
100L1	2.6	4.4	1428	2.2	5	1427
100L2	3.6	4.8	1438	3	6.8	1440
112M	4.8	7	1445	4	8.8	1445
132S	6.6	9.8	1440	5.5	11.5	1448
132M	9	18	1442	7.5	15	1450
160M	13	25	1442	11	22	1450
160L	18	36	1442	15	30	1455
1000r/min
112M	1.8	4.9	892	1.5	4.25	920
132M1	2.5	6.5	920	2.2	5.9	935
132M2	4	9.2	915	3.7	8.8	912
160M1	6.3	14.1	922	5.5	12.5	933
160M2	8.5	18	943	7.5	15.9	948
160L	15	32	920	11	24.6	953
750r/min
160L	9	21.1	694	7.5	18	705
180L	13	30	675	11	25.8	694
200L	18.5	40	697	15	33.1	710
225M	26	53.5	701	22	45.8	712
250M	35	74	681	30	63.3	694

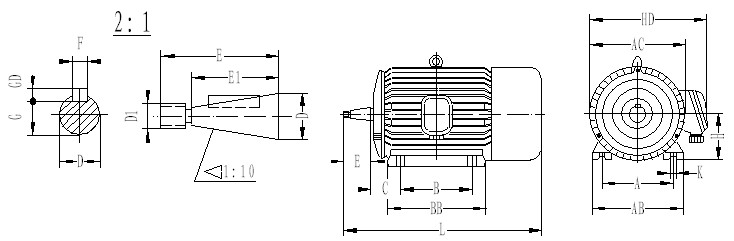

YZ外形及安装尺寸图Outline and Mounting Dimensions for YZ

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)										外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	H	A	B	C	K	D	D1	E	E1	FxGD	AB	AC	BB	HD	L
112M	112	190	140	70	12	32	-	80	-	10x8	250	235	225	315	420
132M	132	216	178	89	12	38	-	80	-	10x8	275	285	240	355	495
160M	160	254	210	108	15	48	-	110	-	14x9	320	320	290	415	608
160L	160	254	254	108	15	48	-	110	-	14x9	320	320	330	415	650
180L	180	279	279	121	15	55	M36×3	110	82	14x9	360	360	370	470	686
200L	200	318	305	133	19	60	M42×3	140	105	16x10	400	406	390	520	784
225M	225	356	311	149	19	65	M42×3	140	105	16x10	455	425	410	560	850
250M	250	406	349	168	24	70	M48×3	140	105	18x11	515	495	500	625	945

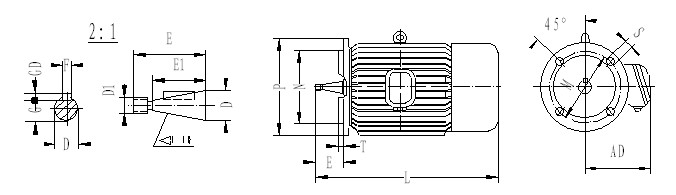

YZ外形及安装尺寸图Outline and Mounting Dimensions for YZ

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)												外形尺寸 Outling Dimensions (mm)
	凸缘代号	M	N	P	T	S	D	D1	E	E1	F	GD	L	AD
	凸缘代号	M	N	P	T	S	D	D1	E	E1	F	GD	L	AD
112M	FF215	215	180	250	4	4-φ15	32	-	80	-	10	8	420	203
132M	FF265	265	230	300	4	4-φ15	38	-	80	-	10	8	495	218
160M	FF300	300	250	350	5	4-φ19	48	-	110	-	14	9	608	265
160L	FF300	300	250	350	5	4-φ19	48	-	110	-	14	9	650	265
180L	FF300	300	250	350	5	4-φ19	55	M36×3	110	82	14	9	686	280
200L	FF400	400	350	450	5	8-φ19	60	M42×3	140	105	16	10	784	317
225M	FF400	400	350	450	5	8-φ19	65	M42×3	140	105	16	10	850	335

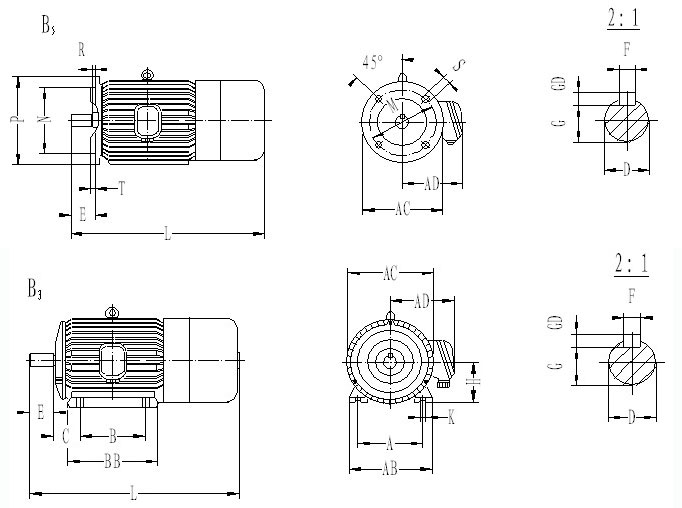

YZ外形及安装尺寸图Outline and Mounting Dimensions for YZ

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	H	A	B	C	D	E	FxGD	G	K	R	T	M	N	P	S	AB	BB	AC	AD	L
71	71	112	90	45	14	30	5x5	11	4-φ7	0	4	130	110	160	4-φ10	145	130	150	130	300
80	80	125	100	50	19	40	6x6	15.5	4-φ10	0	4	165	130	200	4-φ12	160	130	170	150	310
90S	90	140	100	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	130	180	155	400
90L	90	140	125	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	155	180	155	425
100L	100	160	140	63	28	60	8x7	24	4-φ12	0	4	215	180	250	4-φ15	205	176	210	180	410
112M	112	190	140	70	32	80	10x8	27	4-φ12	0	4	215	180	250	4-φ15	245	180	230	190	430
132S	132	216	140	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	200	270	210	507
132M	132	216	178	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	238	270	210	545
160M	160	254	210	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	270	330	255	630
160L	160	254	254	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	314	330	255	675
180M	180	279	241	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	311	360	285	702
180L	180	279	279	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	349	360	285	740
200L	200	318	305	133	60	140	18x11	53	4-φ19	0	5	400	350	450	8-φ19	395	379	400	310	805
225S	225	356	286	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	368	450	345	820
225M	225	356	311	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	393	450	345	845
250M	250	406	349	168	70	140	20x12	62.5	4-φ24	0	5	500	450	550	8-φ19	490	455	500	385	930
280S	280	457	368	190	80	140	22x14	71	4-φ24	0	5	500	450	550	8-φ19	545	530	560	410	1045
280M	280	457	419	190	80	140	22x14	71	4-φ24	0	5	500	450	550	8-φ19	545	581	560	410	1100

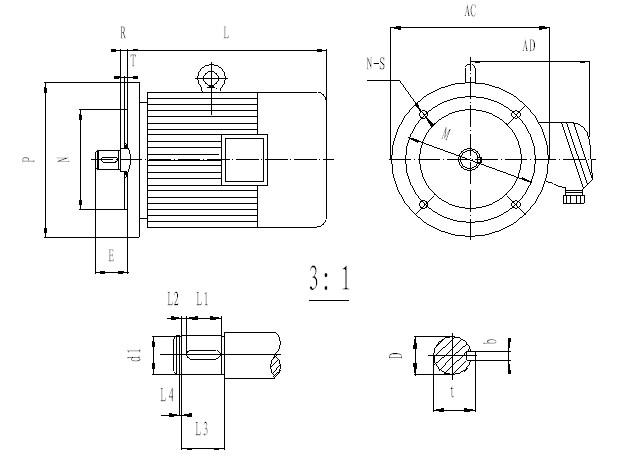

YZ直联式外形及安装尺寸图 (1)
Mounting Dimension and Data for YZ Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (1)

机座号 Frame Size	安装尺寸 Mounting Dimensions ( mm)															外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	E	b	t	L1	L2	L3	L4	d1	R	T	M	N	P	N-S	AC	AD	L
71	14	35	5	16	15	1.5	18	1.1	13.4	13	3	100	80	120	4-φ6.5	145	130	270
80	14	45	5	16	18	1	20	1.1	13.4	21	3	100	80	120	4-φ6.5	170	150	270
90	16	35	5	18	15	1.5	18	1.1	15.2	13	3.5	130	110	160	4-φ9	180	155	375
100	18	45	6	20.5	18	1	20	1.1	17	21	3.5	130	110	160	4-φ9	210	180	350
112	22	53	8	25	20	1.5	23	1.1	21	26	3.5	165	130	200	4-φ11	230	190	350
132	28	63	8	31	25	2	29	1.3	26.6	28	4	215	180	250	4-φ13.5	270	210	465
160	32	72	10	35	30	2.2	35	1.3	30.3	31	4	265	230	300	4-φ13.5	330	255	565
180	38	86	12	41	40	1	42	1.7	36	37	5	300	250	350	4-φ17.5	360	285	630
200	48	94	14	51.5	45	2.5	50	1.7	45.5	36	5	350	300	400	6-φ17.5	400	310	665
225	48	94	14	51.5	45	2.5	50	1.7	45.5	36	5	400	350	450	6-φ22	450	345	705
250	55	113	16	59	50	2.5	55	2.2	52	52	5	500	450	550	6-φ22	500	385	795
280	55	126	16	59	50	2.5	65	2.2	52	51	5	500	450	550	6-φ22	560	410	905

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind o f motors and their components according to customer’s demands.

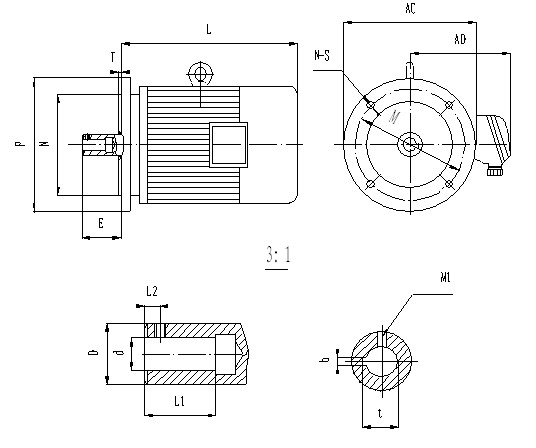

YZ直联式外形及安装尺寸图 (2)
Mounting Dimension and Data for YZ Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (2)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)													外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	d	b	t	L2	L1	M1	E	T	M	N	P	N-S	AC	AD	L
71	30	12	5	14.3	8	21	4	35	3	100	80	120	4-φ6.5	145	130	270
80	30	12	5	14.3	8	23	4	45	3	100	80	120	4-φ6.5	170	150	270
90	30	14	5	16.3	8	21	4	35	3.5	130	110	160	4-φ9	180	155	375
100	40	16	5	18.3	8	23	5	45	3.5	130	110	160	4-φ9	210	180	350
112	40	18	6	20.8	8	26	5	53	3.5	165	130	200	4-φ11	230	190	350
132	45	22	8	25.3	10	32	5	63	4	215	180	250	4-φ13.5	270	210	465
160	55	28	8	31.3	10	36	6	72	4	265	230	300	4-φ13.5	330	255	565
180	65	32	10	35.3	10	47	6	86	5	300	250	350	4-φ17.5	360	285	630
200	70	38	12	41.3	15	55	8	94	5	350	300	400	6-φ17.5	400	310	665
225	70	38	12	41.3	15	55	8	94	5	400	350	450	6-φ22	450	345	705
250	85	48	14	51.8	15	60	8	113	5	500	450	550	6-φ22	500	385	790
280	85	48	14	51.8	15	60	8	126	5	500	450	550	6-φ22	560	410	905

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind o f motors and their components according to customer’s demands.
