产品名称：YZZE系列起重机起吊电机
规格：
功能与用途：
产品说明书下载

　YZYE系列起重机运行电机YZDYE系列起重机运行电动机　

产品概述
技术参数
安装尺寸

YZZE系列起重机起吊电机

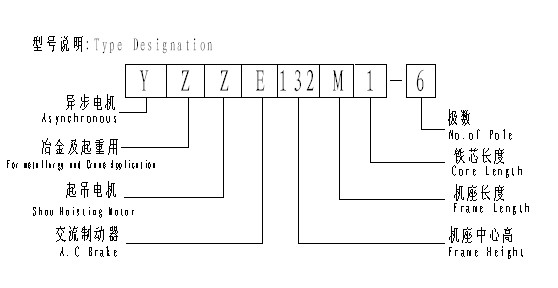

YZZE系列起重机起升用制动三相异步电动机

YZZE SERIES THREE PHASE ASYNCHRONOUS HOISTING MOTOR WITH BRAKE FOR METALLURGY AND CRANE APPLICATIONS

　　YZZE系列电机为起重机起吊电机。

　　YZZE系列电动机是由YZ系列电动机附加交流制动器组合而成，交流制动器无二极管整流，由三相380V电源直接供电，具有运行可靠，使用寿命长，制动速度快，定位准确，制动力矩大等优点。

　　该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。

　　本系列变频电机可制成直联式结构，安装型式和尺寸参见直联式安装表。

　　本系列变频电机可以按用户提供的图纸设计并制造。

YZZE Series 3-Phase Asynchronous Hoisting Motor with Brake for Metallurgy and Crane Applications is based on YZ Series 3-phase Asynchronous Motor for Metallurgy and Crane Applications. It is for the various types of metallurgy and crane applications and approved to be capable for the large overload, be durable and have high mechanical strength.

Nevertheless, YZZE Series 3-Phase Asynchronous Hoisting Motor with Brake for Metallurgy and Crane Applications has powered an AC brake. The AC brake consumes power directly from a three phase power supply without rectified diodes. The AC brakes are not only quick response braking (100 times quicker than a DC single phase brake) but also have improved reliability and long service life. The advantages of AC brakes also include precise positioning, such as no axial movements, and the capability of a wide adjustable range of braking torque, such as from zero (0) to any desired values. The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.

In contrast with YZYE Series 3-Phase Asynchronous Running Motor with Brake for Metallurgy and Crane Applications, YZZE Series 3-Phase Asynchronous Hoisting Motor with Brake for Metallurgy and Crane Applications is mainly for the purpose of vertical/lifting movements.

The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.

Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.

The motor can be customized designed and produced to meet your request.

TAG：电动机变频电机

　YZYE系列起重机运行电机YZDYE系列起重机运行电动机　

YZZE系列制动三相异步电动机技术参数 Data for YZZE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S3																													制动力矩 Braking Torque
	每小时起动6次 6 Starts Per Hour
CDF	15%			25%			40%											60%					100%
项目 ltem	额定功率Rated Output	额定电流 Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output		额定电流Rated Current	转速Speed	最大转矩 Max.Torque 额定转矩 Rated Torque			堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power Factor	额定功率Rated Output		额定电流Rated Current		转速Speed	额定功率Rated Output		额定电流Rated Current		转速Speed
机座号 Frame Size
	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)	(KW)		(A)	(r/min)						(%)	(cosφ)	(KW)		(A)		(r/min)	(KW)		(A)		(r/min)			(N.m)
1500 r/min
802	0.77	2.2	1320	0.66	1.8	1390	0.55	1.6		1395		2.2	2.1		4.2	65	0.7		0.4		1.4	1446		0.3		0.7		1465	10
90S	1.1	2.5	1325	0.9	2.3	1440	0.75	2.1		1442		2.2	2.3		4.3	67	0.72		0.55		1.9	1450		0.4		0.92		1460	10
90L	1.5	3.5	1330	1.3	2.8	1420	1.1	2.7		1420		2.5	2.3		4.7	66	0.7		0.77		2.6	1442		0.6		1.6		1455	15
100L1	2.2	4.3	1425	1.8	4.4	1438	1.5	3.7		1425		2.4	2.3		4.6	70	0.71		1.1		3	1442		0.8		2.3		1455	25
100L2	3	6.8	1428	2.6	6	1425	2.2	5		1427		2.2	2.3		4.9	72	0.72		1.5		4	1445		1.1		3		1458	30
112M	4	9	1430	3.6	8	1438	3	6.8		1440		2.4	2.3		4.8	74	0.73		2.1		4.5	1448		1.5		4		1458	40
132S	5.5	12	1435	4.8	10	1445	4	8.8		1445		2.4	2.3		5.1	78	0.76		2.8		4.7	1450		2.1		5.1		1462	45
132M	7.6	16	1440	6.6	13	1450	5.5	11.5		1448		2.5	2.4		5.4	80	0.81		3.8		7.8	1450		3		6.2		1466	75
160M	11	21	1442	9	18	1442	7.5	15		1450		2.5	2.4		5.8	83	0.82		5.5		10	1450		4		7.9		1463	110
160L	16	31	1442	13	27	1445	11	25		1450		2.5	2.4		5.8	84	0.82		8		16	1455		5.8		12		1458	150
180M	21	43	1445	18	37	1450	15	31		1460		2.5	2.4		5.8	84	0.83		11		23	1465		10		16		1468	190
180L 200L	26	51	1445	22	44	1450	18.5	37		1460		2.5	2.4		5.8	85	0.83		13.5		27	1465		12.5		24		1468	240
200L	30	58	1445	26	51	1450	22	43		1460		2.5	2.4		5.8	85	0.84		16		31	1465		15		30		1468	280

YZZE系列制动三相异步电动机技术参数 Data for YZZE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S3																											制动力矩 Braking Torque
	每小时起动6次 6 Starts Per Hour
CDF	15%			25%					40%										60%					100%
项目 ltem	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current		转速Speed		额定功率Rated Output	额定电流Rated Current		转速Speed	最大转矩 Max.Torque 额定转矩 Rated Torque	堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power Factor		额定功率Rated Output		额定电流Rated Current	转速Speed		额定功率Rated Output	额定电流Rated Current	转速Speed
机座号 Frame Size
	(KW)	(A)	(r/min)	(KW)	(A)		(r/min)		(KW)	(A)		(r/min)				(%)	(cosφ)		(KW)		(A)	(r/min)		(KW)	(A)	(r/min)		(N.m)
1000 r/min
90S	0.77	2.3	845	0.66		1.8		850	0.55	1.7	875		2.2	2.2	5.5	64		0.65		0.37	1.4		913	0.3	0.71		920	12
90L	1.1	2.6	850	0.9		2.4		855	0.75	2.2	880		2.2	2.2	5.5	65		0.68		0.55	1.8		913	0.4	0.93		920	15
100L1	1.5	3.6	855	1.3		2.9		860	1.1	2.8	885		2.2	2.2	5.5	65		0.69		0.75	2.5		917	0.55	1.5		925	22
100L2	2.2	4.4	865	1.8		4.4		870	1.5	3.9	900		2.3	2.2	5.5	67		0.7		1.1	3.1		917	0.75	2.2		925	30
132S	3	6.8	875	2.66		6		880	2.2	5.1	915		2.3	2.3	5.5	69.5		0.71		1.5	4		920	1.1	3.1		930	45
132M	5	10	885	4.39		9		890	3.7	8	920		2.3	2.3	5.5	75		0.75		2	4.7		925	2	5		935	75
160M	7.5	16	890	6.6		13		895	5.5	11.3	920		2.3	2.3	5.5	79		0.79		3.8	7.5		925	2.8	6.5		935	110
160L	11	21	895	9		17		900	7.5	16	920		2.5	2.3	5.5	80.6		0.8		5.5	11.5		925	4	10		935	150
180M	16	31	900	13		27		905	11	26	925		2.5	2.3	5.5	82		0.81		8	16		930	5.5	13		945	220
180L	21	44	905	18		37		910	15	32	925		2.5	2.4	5.5	83		0.82		11	23		930	10	17		945	286
200L	26	53	910	22		45		915	18.5	38	930		2.5	2.4	5.5	83.5		0.83		16	33		935	14	22		950	350
225M	30	62	910	26		54		920	22	46	935		2.5	2.4	5.5	84		0.8355		19	40		940	17	35		950	420
750 r/min
160L	11	27.4	675	9		21.1		694	7.5	18	705		2.7	2.5	5.1	82.4		0.77		8	15.6		717	5	14.2		724	220
180L	15	35.3	654	13		30		675	11	25.8	694		2.5	2.6	4.9	80.9		0.81		9	21.5		710	7.5	19.2		718	300
200L	22	47.5	686	18.5		40		697	15	33.1	710		2.8	2.7	6.1	86.2		0.8		13	28.1		715	11	26		720	440
225M	33	69	687	26		53.5		701	22	45.8	712		2.9	2.9	6.2	87.2		0.83		18.5	40		718	17	37.5		720	600
250M	42	89	663	35		74		681	30	63.3	694		2.54	2.7	5.47	85.7		0.84		26	56		702	22	45		717	770

YZZE系列制动三相异步电动机技术参数 Data for YZZE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S2
工作方式 Duty Type	S2
CDF	30分钟 30 Minutes			60分钟 60 Minutes
项目Ltem	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
机座号 Frame Size	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
1500 r/min
802	0.66	1.8	1390	0.55	1.6		1440
90S	0.9	2.3	1440	0.75	2.1		1442
90L	1.3	2.8	1420	1.1	2.7		1435
100L1	1.8	4.4	1438	1.5	3.7		1432
100L2	2.6	6	1428	2.2	5		1430
112M	3.6	8	1438	3	6.8		1422
132S	4.8	10	1445	4	8.8		1420
132M	6.6	13	1440	5.5	11		1445
160M1	9	18	1442	7.5	15		1450
160M2	13	27	1445	11	27		1455
160L	18	37	1445	15	31		1455
180M	18	37	1445	15	31		1455
180L	22	44	1450	18.5	37		1460
200L	36	51	1450	22	43		1460
1000 r/min
90L	0.66	1.8	850	0.55	1.7	905
100L1	0.9	2.4	855	0.75	2.2	905
100L2	1.3	2.9	860	1.1	2.8	910
112M	1.8	4.4	870	1.5	3.9	915
132S	2.6	6	888	2.2	2.1	915
132M	4.3	9	890	3.7	8	920
160M	6.6	13	895	5.5	11.5	920
160L	9	17	900	7.5	16	920
180M	13	27	905	11	26	925
180L	18	37	910	15	32	925
200L	22	45	915	18.5	38	930
225M	26	54	920	22	46	925
750 r/min
160L	9	21.1	694	7.5	18	705
180L	13	30	675	11	25.8	694
200L	18.5	40	697	15	33.1	710
225M	26	53.5	701	22	45.8	712
250M	35	74	681	30	63.3	694

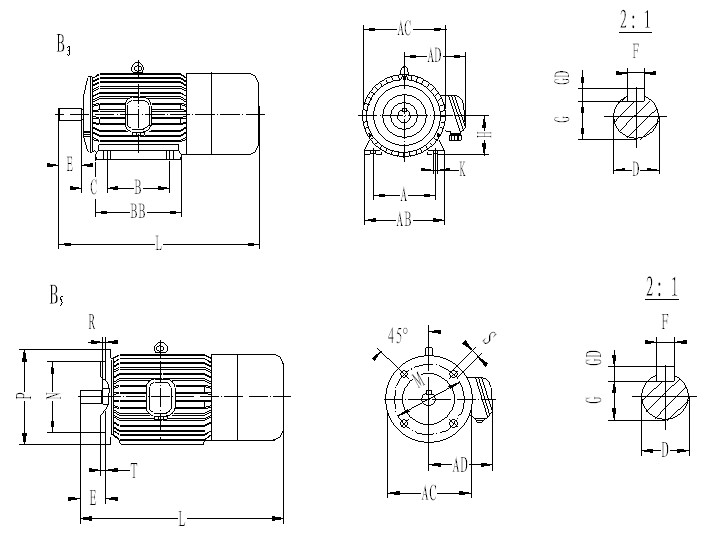

YZZE外形及安装尺寸图Outline and Mounting Dimensions for YZZE

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	H	A	B	C	D	E	FxGD	G	K	R	T	M	N	P	S	AB	BB	AC	AD	L
71	71	112	90	45	14	30	5x5	11	4-φ7	0	4	130	110	160	4-φ10	145	130	150	130	385
80	80	125	100	50	19	40	6x6	15.5	4-φ10	0	4	165	130	200	4-φ12	160	130	170	150	395
90S	90	140	100	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	130	180	155	420
90L	90	140	125	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	155	180	155	445
100L	100	160	140	63	28	60	8x7	24	4-φ12	0	4	215	180	250	4-φ15	205	176	210	180	490
112M	112	190	140	70	32	80	10x8	27	4-φ12	0	4	215	180	250	4-φ15	245	180	230	190	520
132S	132	216	140	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	200	270	210	605
132M	132	216	178	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	238	270	210	645
160M	160	254	210	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	270	330	255	740
160L	160	254	254	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	314	330	255	785
180M	180	279	241	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	311	360	285	822
180L	180	279	279	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	349	360	285	860
200L	200	318	305	133	60	140	18x11	53	4-φ19	0	5	400	350	450	8-φ19	395	379	400	310	935
225S	225	356	286	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	368	450	345	1025
225M	225	356	311	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	393	450	345	1050
250M	250	406	349	168	70	140	20x12	62.5	4-φ24	0	5	500	450	550	8-φ19	490	455	500	385	1135

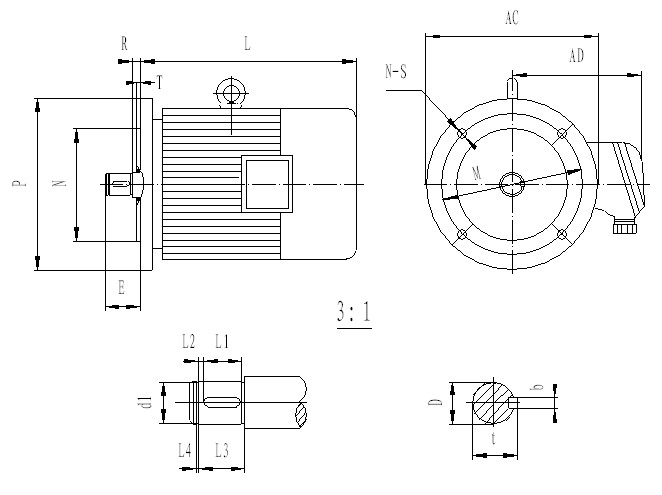

YZZE直联式外形及安装尺寸图 (1) Mounting Dimension and Data for YZZE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (1)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	E	b	t	L1	L2	L3	L4	d1	R	T	M	N	P	N-S	AC	AD	L
71	16	35	5	18	15	1.5	18	1.1	15.2	13	3	100	80	120	4-φ6.5	145	130	320
80	16	45	5	18	18	1	20	1.1	15.2	21	3	100	80	120	4-φ6.5	170	150	335
90	18	35	6	20.5	15	1.5	18	1.1	17	13	3.5	130	110	160	4-φ9	180	155	380
100	22	45	8	25	18	1	20	1.1	21	21	3.5	130	110	160	4-φ9	210	180	415
112	28	53	8	31	20	1.5	23	1.3	26.6	26	3.5	165	130	200	4-φ11	230	190	427
132	32	63	10	35	25	2	29	1.3	30.3	28	4	215	180	250	4-φ13.5	270	210	550
160	38	72	12	41	30	2.2	35	1.7	36	31	4	265	230	300	4-φ13.5	330	255	582
180	48	86	14	51.5	40	1	42	1.7	45.5	37	5	300	250	350	4-φ17.5	360	285	745
200	55	94	16	59	45	2.5	50	2.2	52	36	5	350	300	400	6-φ17.5	400	310	891
225	55	94	16	59	45	2.5	50	2.2	52	36	5	400	350	450	6-φ22	450	345	1050
250	68	113	20	72.5	50	2.5	55	2.7	65	52	5	500	450	550	6-φ22	500	385	1142
280	68	126	20	72.5	50	2.5	55	2.7	65	52	5	500	450	550	6-φ22	560	410	1250

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

YZZE直联式外形及安装尺寸图 (2) Mounting Dimension and Data for YZZE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (2)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)													外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	d	b	t	L2	L1	M1	E	T	M	N	P	N-S	AC	AD	L
71	40	14	5	16.3	8	21	4	35	3	100	80	120	4-φ6.5	145	130	320
80	40	14	5	16.3	8	23	4	45	3	100	80	120	4-φ6.5	170	150	335
90	40	16	5	18.3	8	21	4	35	3.5	130	110	160	4-φ9	180	155	380
100	45	18	6	20.8	8	23	5	45	3.5	130	110	160	4-φ9	210	180	415
112	45	22	8	25.3	8	26	5	53	3.5	165	130	200	4-φ11	230	190	427
132	55	28	8	31.3	10	32	5	63	4	215	180	250	4-φ13.5	270	210	550
160	65	32	10	35.3	10	36	6	72	4	265	230	300	4-φ13.5	330	255	582
180	70	38	12	41.3	10	47	6	86	5	300	250	350	4-φ17.5	360	285	745
200	85	48	14	51.8	15	55	8	94	5	350	300	400	6-φ17.5	400	310	891
225	85	48	14	51.8	15	55	8	94	5	400	350	450	6-φ22	450	345	1050
250	100	55	16	59.3	15	60	8	113	5	500	450	550	6-φ22	500	385	1142
280	100	55	16	59.3	15	60	8	126	5	500	450	550	6-φ22	560	410	1250

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
