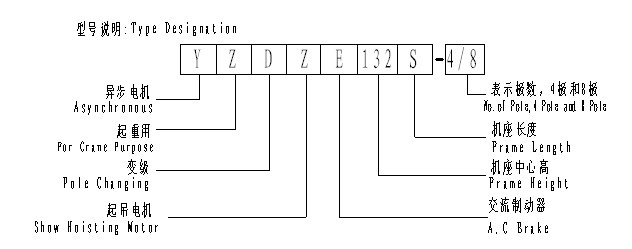

YZDZE系列为起重机起吊电动机
YZDZE系列起重机起吊用变极制动三相异步电动机,本系列电动机具有结构紧凑,体积小,重量轻,控制方便,安装调整方便等优点,YZDZE系列电动机适用于驱动各种类型起重机械及其他类似设备的运行机构。
YZDZE系列电动机由三相异步电动机附加交流制动器组合而成,交流制动器无整流二极管,由三相380V电源直接供电,具有运行可靠,使用寿命长,制动速度快,定位准确以及制动力矩大等优点。
该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。
本系列变频电机可制成直联式结构,安装型式和尺寸参见直联式安装表。
本系列变频电机可以按用户提供的图纸设计并制造。
YZDZE Series 3-Phase Pole Changing Asynchronous Hoisting Motor for Crane Applications has identical features and functions to YZDYE Series 3-Phase Pole Changing Asynchronous Running Motor for Crane Applications. It has the advantages of being of compact construction, light weight, simple to control and easy to install. It is suitable for driving various types of crane machines and similar equipment. In comparison with other series motors, this motor is capable to change the number of poles for participating in the work when required. It comprises of a three phase asynchronous motor and an AC brake. The brake is powered directly from a three phase power supply without rectified diodes, possessing the advantages of reliable operation, long service life, quick response braking, precise positioning and the capability of adjustable braking torque (from zero to any desired value). The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.
YZDZE Series 3-Phase Pole Changing Asynchronous Hoisting Motor for Crane Applications differs from YZDYE Series 3-Phase Pole Changing Asynchronous Running Motor for Crane Applications. It is the hoisting motor which is for the purpose of vertical/lifting movements.
The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.
Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.
The motor can be customized designed and produced to meet your request.
机座号 Frame Size | 额定功率 Rated Output (KW) | 额定转速 Rated Speed (r/min) | 额定电流 Rated Current (A) | 堵转电流 额定电流 Blocking Current Rated Current | 堵转转矩 额定转矩 Blocking Torque Rated Torque | 最大转矩 额定转矩 Maximum Torque Rated Torque | 制动力矩 Braking Torque (N.m) |
80L-8/4 | 0.1/0.2 | 740/1440 | 0.65/0.7 | 5/6 | 2.2 | 2.2 | 3 |
90S-8/4 | 0.2/0.4 | 740/1440 | 1.2/1.45 | 5/6 | 2.2 | 2.2 | 5 |
90L-8/4 | 0.4/0.8 | 740/1440 | 1.9/2.6 | 5/6 | 2.2 | 2.2 | 10 |
90L-12/4 | 0.15/0.4 | 420/1440 | 1.5/1.6 | 4/6 | 2.2 | 2.2 | 5 |
100L-8/4 | 0.55/1.1 | 740/1440 | 2.7/3.5 | 5/6.5 | 2.2 | 2.2 | 15 |
100L-12/4 | 0.25/0.8 | 420/1440 | 2/2.7 | 5/6 | 2.2 | 2.2 | 10 |
100L1-16/4 | 0.05/0.2 | 325/1440 | 0.8/1.2 | 5/6 | 2.2 | 2.2 | 5 |
100L2-16/4 | 0.1/0.4 | 325/1440 | 1.9/2.2 | 5/6 | 2.2 | 2.2 | 5 |
112M-8/4 | 0.75/1.5 | 710/1440 | 3.4/4.5 | 5/6 | 2.2 | 2.2 | 20 |
112M-12/4 | 0.37/1.1 | 430/1440 | 2.2/3.5 | 5/6 | 2.2 | 2.2 | 15 |
112M1-16/4 | 0.2/0.8 | 315/1440 | 1.9/2.8 | 5/6 | 2.2 | 2.2 | 10 |
112M2-16/4 | 0.3/1.1 | 315/1440 | 2.5/3.6 | 5/6 | 2.2 | 2.2 | 15 |
132S-8/4 | 1.1/2.2 | 710/1440 | 4.6/6 | 5/6.5 | 2.2 | 2.2 | 30 |
132S-12/4 | 0.5/1.5 | 435/1450 | 3.5/4.6 | 5/6.5 | 2.2 | 2.2 | 20 |
132S-16/4 | 0.37/1.5 | 315/1450 | 3.6/4.7 | 5/6.5 | 2.2 | 2.2 | 20 |
132M1-8/4 | 1.5/3 | 710/1450 | 6.3/8.2 | 5/6.5 | 2.2 | 2.2 | 40 |
132M1-12/4 | 0.75/2.2 | 435/1450 | 5.2/6.8 | 5/6.5 | 2.2 | 2.2 | 30 |
132M1-16/4 | 0.55/2.2 | 315/1450 | 5.5/7.5 | 5/6.5 | 2.2 | 2.2 | 30 |
132M2-8/4 | 2/4 | 710/1450 | 8.7/11 | 5/6 | 2.2 | 2.2 | 50 |
132M2-12/4 | 1/3 | 435/1450 | 7.3/9.2 | 5/6 | 2.2 | 2.2 | 40 |
132M2-16/4 | 0.75/3 | 315/1450 | 7.5/9.5 | 5/6 | 2.2 | 2.2 | 40 |
160M-8/4 | 2.5/5.5 | 710/1450 | 11/14 | 5/6.5 | 2.2 | 2.2 | 70 |
160M-12/4 | 1.5/4 | 435/1450 | 7.3/12.2 | 5/6.5 | 2.2 | 2.2 | 50 |
160M-16/4 | 1.1/4 | 315/1450 | 7.5/12.8 | 5/6.5 | 2.2 | 2.2 | 50 |
160M-24/4 | 0.5/3 | 210/1450 | 8/10 | 5/6.5 | 2.2 | 2.2 | 40 |
160L-12/4 | 1.8/5.5 | 435/1450 | 13/16 | 5/6 | 2.2 | 2.2 | 70 |
160L-16/4 | 1.3/5.5 | 315/1450 | 12.5/16.5 | 5/6 | 2.2 | 2.2 | 70 |
160L-24/4 | 0.6/4 | 210/1450 | 11/13 | 5/6 | 2.2 | 2.2 | 50 |
180M-12/4 | 2.5/7.5 | 435/1450 | 16.5/22 | 5/6 | 2.2 | 2.2 | 95 |
180M-16/4 | 1.8/7.5 | 315/1450 | 17/23 | 5/6 | 2.2 | 2.2 | 95 |
180M-24/4 | 0.9/5.5 | 210/1450 | 14/19 | 5/6 | 2.2 | 2.2 | 70 |
180L-12/4 | 3.6/11 | 435/1450 | 24/32 | 5/6 | 2.2 | 2.2 | 140 |
180L-16/4 | 2.7/11 | 315/1450 | 24.5/33 | 5/6 | 2.2 | 2.2 | 140 |
180L-24/4 | 1.25/7.5 | 210/1450 | 20/26 | 5/6 | 2.2 | 2.2 | 95 |
200L-12/4 | 5/15 | 440/1455 | 32/43.6 | 5/6 | 2.2 | 2.2 | 195 |
200L-16/4 | 3.7/15 | 320/1455 | 32/44 | 5/6 | 2.2 | 2.2 | 195 |
200L-24/4 | 1.8/11 | 215/1455 | 29/38 | 5/6 | 2.2 | 2.2 | 140 |
225M-12/4 | 6.1/18.5 | 440/1455 | 39/53 | 5/6 | 2.2 | 2.2 | 240 |
225M-16/4 | 4.6/18.5 | 320/1455 | 40/54 | 5/6 | 2.2 | 2.2 | 240 |
225M-24/4 | 2.5/15 | 215/1455 | 36/48 | 5/6 | 2.2 | 2.2 | 195 |
250M-12/4 | 7.3/22 | 440/1455 | 47/62 | 5/6 | 2.2 | 2.2 | 280 |
250M-16/4 | 5.5/22 | 320/1455 | 47.5/62 | 5/6 | 2.2 | 2.2 | 280 |
250M-24/4 | 3/18.5 | 215/1455 | 41/55 | 5/6 | 2.2 | 2.2 | 240 |

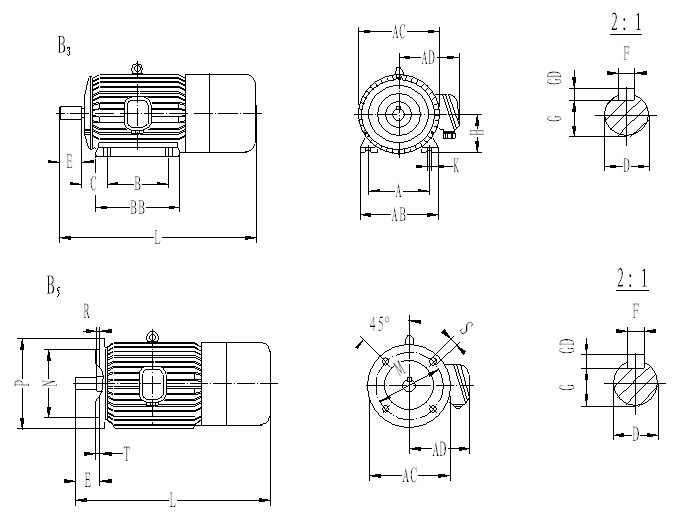

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outline Dimensions (mm) | ||||||||||||||||||
H | A | B | C | D | E | FxGD | G | K | R | T | M | N | P | S | AB | BB | AC | AD | L | |
80 | 80 | 125 | 100 | 50 | 19 | 40 | 6x6 | 15.5 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 160 | 130 | 170 | 150 | 365 |
90S | 90 | 140 | 100 | 56 | 24 | 50 | 8x7 | 20 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 180 | 130 | 180 | 155 | 390 |
90L | 90 | 140 | 125 | 56 | 24 | 50 | 8x7 | 20 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 180 | 155 | 180 | 155 | 415 |
100L | 100 | 160 | 140 | 63 | 28 | 60 | 8x7 | 24 | 4-φ12 | 0 | 4 | 215 | 180 | 250 | 4-φ15 | 205 | 176 | 210 | 180 | 460 |
112M | 112 | 190 | 140 | 70 | 28 | 60 | 8x7 | 24 | 4-φ12 | 0 | 4 | 215 | 180 | 250 | 4-φ15 | 245 | 180 | 230 | 190 | 490 |
132S | 132 | 216 | 140 | 89 | 38 | 80 | 10x8 | 33 | 4-φ12 | 0 | 4 | 265 | 230 | 300 | 4-φ15 | 280 | 200 | 270 | 210 | 575 |
132M | 132 | 216 | 178 | 89 | 38 | 80 | 10x8 | 33 | 4-φ12 | 0 | 4 | 265 | 230 | 300 | 4-φ15 | 280 | 238 | 270 | 210 | 615 |
160M | 160 | 254 | 210 | 108 | 42 | 110 | 12x8 | 37 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 325 | 270 | 330 | 255 | 710 |
160L | 160 | 254 | 254 | 108 | 42 | 110 | 12x8 | 37 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 325 | 314 | 330 | 255 | 755 |
180M | 180 | 279 | 241 | 121 | 48 | 110 | 14x9 | 42.5 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 355 | 311 | 360 | 285 | 790 |
180L | 180 | 279 | 279 | 121 | 48 | 110 | 14x9 | 42.5 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 355 | 349 | 360 | 285 | 830 |
200L | 200 | 318 | 305 | 133 | 55 | 110 | 16x10 | 49 | 4-φ19 | 0 | 5 | 350 | 300 | 400 | 4-φ19 | 395 | 379 | 400 | 310 | 905 |
225S | 225 | 356 | 286 | 149 | 60 | 140 | 18x11 | 53 | 4-φ19 | 0 | 5 | 400 | 350 | 450 | 8-φ19 | 435 | 368 | 450 | 345 | 1100 |
225M | 225 | 356 | 311 | 149 | 60 | 140 | 18x11 | 53 | 4-φ19 | 0 | 5 | 400 | 350 | 450 | 8-φ19 | 435 | 393 | 450 | 345 | 1155 |
250M | 250 | 406 | 349 | 168 | 65 | 140 | 18x11 | 58 | 4-φ24 | 0 | 5 | 500 | 450 | 550 | 8-φ19 | 490 | 455 | 500 | 385 | 1255 |

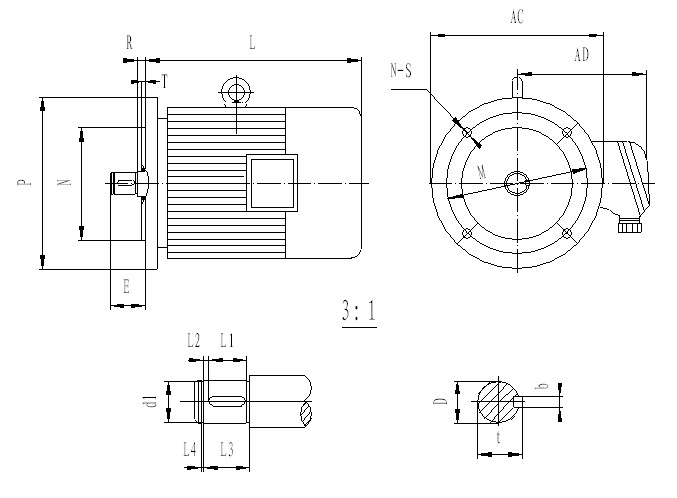

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outling Dimensions (mm) | ||||||||||||||||
D | E | b | t | L1 | L2 | L3 | L4 | d1 | R | T | M | N | P | N-S | AC | AD | L | |
71 | 16 | 35 | 5 | 18 | 15 | 1.5 | 18 | 1.1 | 15.2 | 13 | 3 | 100 | 80 | 120 | 4-φ6.5 | 145 | 130 | 320 |
80 | 16 | 45 | 5 | 18 | 18 | 1 | 20 | 1.1 | 15.2 | 21 | 3 | 100 | 80 | 120 | 4-φ6.5 | 170 | 150 | 335 |
90 | 18 | 35 | 6 | 20.5 | 15 | 1.5 | 18 | 1.1 | 17 | 13 | 3.5 | 130 | 110 | 160 | 4-φ9 | 180 | 155 | 380 |
100 | 22 | 45 | 8 | 25 | 18 | 1 | 20 | 1.1 | 21 | 21 | 3.5 | 130 | 110 | 160 | 4-φ9 | 210 | 180 | 415 |
112 | 28 | 53 | 8 | 31 | 20 | 1.5 | 23 | 1.3 | 26.6 | 26 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 427 |
132 | 32 | 63 | 10 | 35 | 25 | 2 | 29 | 1.3 | 30.3 | 28 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 550 |
160 | 38 | 72 | 12 | 41 | 30 | 2.2 | 35 | 1.7 | 36 | 31 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 582 |
180 | 48 | 86 | 14 | 51.5 | 40 | 1 | 42 | 1.7 | 45.5 | 37 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 745 |
200 | 55 | 94 | 16 | 59 | 45 | 2.5 | 50 | 2.2 | 52 | 36 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 891 |
225 | 55 | 94 | 16 | 59 | 45 | 2.5 | 50 | 2.2 | 52 | 36 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 1050 |
250 | 68 | 113 | 20 | 72.5 | 50 | 2.5 | 55 | 2.7 | 65 | 52 | 5 | 500 | 450 | 550 | 6-φ22 | 500 | 385 | 1142 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

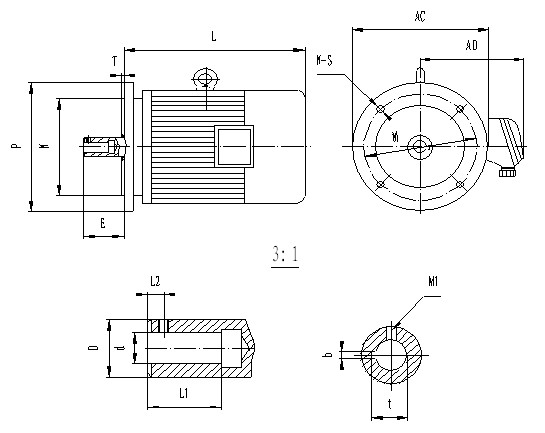

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outling Dimensions (mm) | ||||||||||||||
D | d | b | t | L2 | L1 | M1 | E | T | M | N | P | N-S | AC | AD | L | |
71 | 40 | 14 | 5 | 16.3 | 8 | 21 | 4 | 35 | 3 | 100 | 80 | 120 | 4-φ6.5 | 145 | 130 | 320 |
80 | 40 | 14 | 5 | 16.3 | 8 | 23 | 4 | 45 | 3 | 100 | 80 | 120 | 4-φ6.5 | 170 | 150 | 335 |
90 | 40 | 16 | 5 | 18.3 | 8 | 21 | 4 | 35 | 3.5 | 130 | 110 | 160 | 4-φ9 | 180 | 155 | 380 |
100 | 45 | 18 | 6 | 20.8 | 8 | 23 | 5 | 45 | 3.5 | 130 | 110 | 160 | 4-φ9 | 210 | 180 | 415 |
112 | 45 | 22 | 8 | 25.3 | 8 | 26 | 5 | 53 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 427 |
132 | 55 | 28 | 8 | 31.3 | 10 | 32 | 5 | 63 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 550 |
160 | 65 | 32 | 10 | 35.3 | 10 | 36 | 6 | 72 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 582 |
180 | 70 | 38 | 12 | 41.3 | 10 | 47 | 6 | 86 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 745 |
200 | 85 | 48 | 14 | 51.8 | 15 | 55 | 8 | 94 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 891 |
225 | 85 | 48 | 14 | 51.8 | 15 | 55 | 8 | 94 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 1050 |
250 | 100 | 55 | 16 | 59.3 | 15 | 60 | 8 | 113 | 5 | 500 | 450 | 550 | 6-φ22 | 500 | 385 | 1142 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
