YZYE系列起重机运行电机

YZYE系列起重运行用制动三相异步电动机

YZYE SERIES THREE PHASE ASYNCHRONOUS RUNNING MOTOR WITH BRAKE FOR METALLURGY AND CRANE APPLICATIONS

　　YZYE系列电机为起重机运行电机。

　　YZYE系列电动机是由YZ系列电动机附加交流制动器组合而成，交流制动器无二极管整流，由三相380V电源直接供电，具有运行可靠，使用寿命长，制动速度快，定位准确，制动力矩可从零调到需要值等优点。

　　该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。

　　本系列变频电机可制成直联式结构，安装型式和尺寸参见直联式安装表。

　　本系列变频电机可以按用户提供的图纸设计并制造。

Similar to YZ Series 3-phase Asynchronous Motor for Metallurgy and Crane Applications, YZYE Series 3-Phase Asynchronous Running Motor with Brake for Metallurgy and Crane Applications is also for the various types of metallurgy and crane applications. The motor is approved to be capable for the large overload, be durable and have high mechanical strength.

Compared with YZ series motor, YZYE Series 3-Phase Asynchronous Running Motor with Brake for Metallurgy and Crane Applications has been enhanced with an AC brake. The AC brake is powered directly from a three phase power supply without rectified diodes. The AC brakes are not only quick response braking (100 times quicker than a DC single phase brake) but also have improved reliability and long service life. The advantages of AC brakes also include precise positioning, such as no axial movements, and the capability of a wide adjustable range of braking torque, such as from zero (0) to any desired values. The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.

YZYE Series 3-Phase Asynchronous Running Motor with Brake for Metallurgy and Crane Applications is chiefly used for horizontal movements.

The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.

Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.

The motor can be customized designed and produced to meet your request.

TAG:电动机变频电机

　YZ系列三相异步电动机YZZE系列起重机起吊电机　

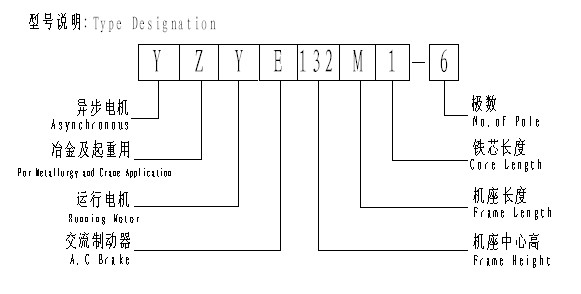

YZYE系列制动三相异步电动机技术参数 Data for YZYE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S3																												制动力矩 Braking Torque
	每小时起动6次 6 Starts Per Hour
CDF	15%			25%			40%											60%					100%
项目 ltem	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output		额定电流Rated Current	转速Speed	最大转矩 Max.Torque 额定转矩 Rated Torque			堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power Factor	额定功率Rated Output		额定电流Rated Current		转速Speed	额定功率Rated Output		额定电流Rated Current	转速Speed
机座号 Frame Size
	(KW)	(A)	(r/min)	(KW)	(A)	(r/min)	(KW)		(A)	(r/min)						(%)	(cosφ)	(KW)		(A)		(r/min)	(KW)		(A)	(r/min)			(N.m)
1500 r/min
802	0.77	2.2	1320	0.66	1.8	1390	0.55	1.6		1395		2.2	2.1		4.2	65	0.7		0.4		1.4	1446		0.3	0.7		1465	0-20
90S	1.1	2.5	1325	0.9	2.3	1440	0.75	2.1		1442		2.2	2.3		4.3	67	0.72		0.55		1.9	1450		0.4	0.92		1460	0-20
90L	1.5	3.5	1330	1.3	2.8	1420	1.1	2.7		1420		2.5	2.7		4.7	66	0.7		0.77		2.6	1442		0.6	1.6		1455	0-25
100L1	2.2	4.3	1425	1.8	3.3	1438	1.5	3.7		1425		2.4	2.6		4.6	70	0.71		1.1		3	1442		0.8	2.3		1455	0-25
100L2	3	4.8	1428	2.6	4.4	1425	2.2	5		1427		2.2	2.1		4.9	72	0.72		1.5		4	1445		1.1	2.5		1458	0-30
112M	4	6	1430	3.6	4.8	1438	3	6.8		1440		2.4	2.2		4.8	74	0.73		2.1		4.5	1448		1.5	3.3		1458	0-30
132S	5.5	8	1435	4.8	7	1445	4	8.8		1445		2.4	2.2		5.1	78	0.76		2.8		4.7	1452		2.1	4.5		1462	0-40
132M	7.6	9.8	1440	6.6	9.8	1450	5.5	11.5		1448		2.5	2.4		5.4	80	0.81		3.8		7.8	1455		3	5.8		1466	0-75
160M	11	13	1442	9	12	1442	7.5	15		1450		2.5	2.6		5.8	83	0.82		5.5		10	1458		4	4.7		1463	0-110
160L	16	31	1442	13	27	1445	11	25		1450		2.5	2.4		5.8	84	0.82		8		16	1455		5.8	12		1458	0-110
180M	21	43	1445	18	37	1450	15	31		1460		2.5	2.4		5.8	84	0.83		11		23	1465		10	16		1468	0-170
180L 200L	26	51	1445	22	44	1450	18.5	37		1460		2.5	2.4		5.8	85	0.83		13.5		27	1465		12.5	24		1468	0-170
200L	30	58	1445	26	51	1450	22	43		1460		2.5	2.4		5.8	85	0.84		16		31	1465		15	30		1468	0-220

YZYE系列制动三相异步电动机技术参数 Data for YZYE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S3																												制动力矩 Braking Torque
	每小时起动6次 6 Starts Per Hour
CDF	15%			25%					40%											60%					100%
项目 ltem	额定功率Rated Output	额定电流Rated Current	转速Speed	额定功率Rated Output	额定电流Rated Current		转速Speed		额定功率Rated Output	额定电流Rated Current		转速Speed		最大转矩 Max.Torque 额定转矩 Rated Torque	堵转转矩Starting Torque 额定转矩 Rated Torque	堵转电流Starting Current 额定电流 Rated Torque	效率Eff	功率因素Power Factor		额定功率Rated Output		额定电流Rated Current	转速Speed		额定功率Rated Output	额定电流Rated Current	转速Speed
机座号 Frame Size
	(KW)	(A)	(r/min)	(KW)	(A)		(r/min)		(KW)	(A)		(r/min)					(%)	(cosφ)		(KW)		(A)	(r/min)		(KW)	(A)	(r/min)		(N.m)
1000 r/min
112M	2.2	6.5	880	2.5		4.9		900	2.2		4.25		920	2.7	2.44	4.47	69.5		0.77		1.1	2.7		925	0.8	3.5		930	0-30
132M1	3	7.5	910	3.3		6.5		920	3.7		5.9		935	2.9	3.1	5.16	75		0.75		1.8	5.3		940	1.5	4.9		945	0-40
132M2	5	11.6	925	6.3		9.2		930	5.5		8.8		935	2.8	3	5.54	79		0.79		3	7.5		940	2.8	7.2		945	0-40
160M1	7.5	16.8	925	8.5		4.1		930	7.5		12.5		935	2.7	2.5	4.9	80.6		0.83		5	11.5		940	4	10		945	0-110
160M2	11	25.4	930	13		18		935	11		15.9		940	2.9	2.4	5.52	83		0.86		6.3	14.2		956	5.5	13		961	0-110
160L	15	32	935	17		28.7		940	15		24.6		945	2.9	2.7	6.17	84		0.85		9	20.6		954	2.5	18.8		960	0-110
180M	16	31	935	13		27		940	11		26		945	2.5	2.3	5.5	82		0.81		8	16		960	5.5	13		965	0-170
180L	21	44	940	18		37		945	15		32		950	2.5	2.4	5.5	83		0.82		11	23		955	10	17		960	0-170
200L	26	53	940	22		45		945	18.5		38		950	2.5	2.4	5.5	83.5		0.83		16	33		955	14	22		960	0-220
225M	30	57	945	26		49		950	22		45		955	2.5	2.5	5.5	84		0.84		19	38		960	16	31		985	0-280
750 r/min
160L	11	57	675	9		21.1		694	7.5		18		705	2.7	2.5	5.1	82.4		0.77		8	15.6		717	5	14.2		724	0-110
180L	15	35.3	654	13		30		675	11		25.8		694	2.5	2.6	4.9	80.9		0.81		9	21.5		710	7.5	19.2		718	0-1700
200L	22	47.5	686	18.5		40		694	15		33.1		710	2.8	2.7	6.1	86.2		0.8		13	28.1		715	11	26		720	0-220
225M	33	69	687	26		53.5		701	22		45.8		712	2.9	2.9	6.2	87.2		0.83		18.5	40		718	17	37.5		720	0-280
250M	42	89	663	35		74		681	30		63.3		694	2.54	2.7	5.47	85.7		0.84		26	56		702	22	45		717	0-350

YZYE系列制动三相异步电动机技术参数 Data for YZYE Series 3-phase Asynchronous Motor

工作方式 Duty Type	S2
工作方式 Duty Type	S2
CDF	30分钟 30 Minutes			60分钟 60 Minutes
项目 Ltem	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
机座号 Frame Size	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)	额定功率 Rated Output (KW)	额定电流 Rated Current (A)	转速 Speed (r/min)
1500 r/min
802	0.66	1.8	1390	0.55	0.9		1440
90S	0.9	2.3	1440	0.75	1.6		1442
90L	1.3	2.8	1420	1.1	2		1435
100L1	1.8	3.3	1438	1.5	2.4		1432
100L2	2.6	4.4	1428	2.2	3.2		1430
112M	3.6	4.8	1438	3	4.25		1422
132S	4.8	7	1445	4	5.9		1420
132M	6.6	9.8	1440	5.5	8.6		1445
160M	9	12	1442	7.5	9.5		1450
160L	18	37	1445	15	31		1455
180M	18	37	1445	15	31		1455
180L	22	44	1450	18.5	37		1460
200L	36	51	1450	22	43		1460
1000 r/min
112M	1.8	4.9	900	1.5	4.25	920
132M1	2.5	6.5	920	2.2	5.9	935
132M2	4	9.2	930	3.7	8.8	935
160M1	6.3	14.1	930	5.5	12.5	935
160M2	8.5	18	935	7.5	15.9	940
160L	15	32	940	11	24.6	945
180M	13	27	940	11	26	945
180L	18	37	945	15	32	950
200L	22	45	945	18.5	38	950
225M	26	49	950	22	45	955
750 r/min
160L	9	21.1	694	7.5	18	705
180L	13	30	675	11	25.8	694
200L	18.5	40	697	15	33.1	710
225M	26	53.5	701	22	45.8	712
250M	35	74	681	30	63.3	694

YZYE外形及安装尺寸图Outline and Mounting Dimensions for YZYE

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)															外形尺寸 Outline Dimensions (mm)
机座号 Frame Size	H	A	B	C	D	E	FxGD	G	K	R	T	M	N	P	S	AB	BB	AC	AD	L
71	71	112	90	45	14	30	5x5	11	4-φ7	0	4	130	110	160	4-φ10	145	130	150	130	385
80	80	125	100	50	19	40	6x6	15.5	4-φ10	0	4	165	130	200	4-φ12	160	130	170	150	395
90S	90	140	100	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	130	180	155	420
90L	90	140	125	56	24	50	8x7	20	4-φ10	0	4	165	130	200	4-φ12	180	155	180	155	445
100L	100	160	140	63	28	60	8x7	24	4-φ12	0	4	215	180	250	4-φ15	205	176	210	180	490
112M	112	190	140	70	32	80	10x8	27	4-φ12	0	4	215	180	250	4-φ15	245	180	230	190	520
132S	132	216	140	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	200	270	210	605
132M	132	216	178	89	38	80	10x8	33	4-φ12	0	4	265	230	300	4-φ15	280	238	270	210	645
160M	160	254	210	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	270	330	255	740
160L	160	254	254	108	48	110	14x9	42.5	4-φ15	0	5	300	250	350	4-φ19	325	314	330	255	785
180M	180	279	241	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	311	360	285	822
180L	180	279	279	121	55	110	16x10	49	4-φ15	0	5	300	250	350	4-φ19	355	349	360	285	860
200L	200	318	305	133	60	140	18x11	53	4-φ19	0	5	400	350	450	8-φ19	395	379	400	310	935
225S	225	356	286	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	368	450	345	1025
225M	225	356	311	149	65	140	18x11	58	4-φ19	0	5	400	350	450	8-φ19	435	393	450	345	1050
250M	250	406	349	168	70	140	20x12	62.5	4-φ24	0	5	500	450	550	8-φ19	490	455	500	385	1135

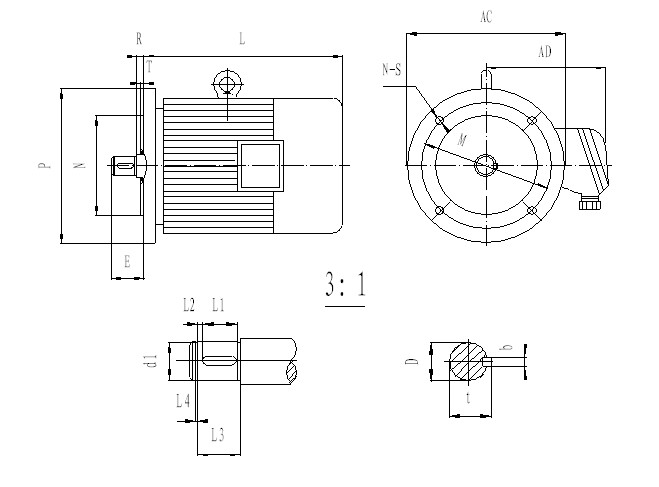

YZYE直联式外形及安装尺寸图 (1)
Mounting Dimension and Data for YZYE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (1)

机座号 Frame Size	安装尺寸 Mounting Dimensions ( mm)															外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	E	b	t	L1	L2	L3	L4	d1	R	T	M	N	P	N-S	AC	AD	L
71	14	35	5	16	15	1.5	18	1.1	13.4	13	3	100	80	120	4-φ6.5	145	130	355
80	14	45	5	16	18	1	20	1.1	13.4	21	3	100	80	120	4-φ6.5	170	150	355
90	16	35	5	18	15	1.5	18	1.1	15.2	13	3.5	130	110	160	4-φ9	180	155	395
100	18	45	6	20.5	18	1	20	1.1	17	21	3.5	130	110	160	4-φ9	210	180	430
112	22	53	8	25	20	1.5	23	1.1	21	26	3.5	165	130	200	4-φ11	230	190	440
132	28	63	8	31	25	2	29	1.3	26.6	28	4	215	180	250	4-φ13.5	270	210	565
160	32	72	10	35	30	2.2	35	1.3	30.3	31	4	265	230	300	4-φ13.5	330	255	675
180	38	86	12	41	40	1	42	1.7	36	37	5	300	250	350	4-φ17.5	360	285	750
200	48	94	14	51.5	45	2.5	50	1.7	45.5	36	5	350	300	400	6-φ17.5	400	310	795
225	48	94	14	51.5	45	2.5	50	1.7	45.5	36	5	400	350	450	6-φ22	450	345	910
250	55	113	16	59	50	2.5	55	2.2	52	52	5	500	450	550	6-φ22	500	385	995

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

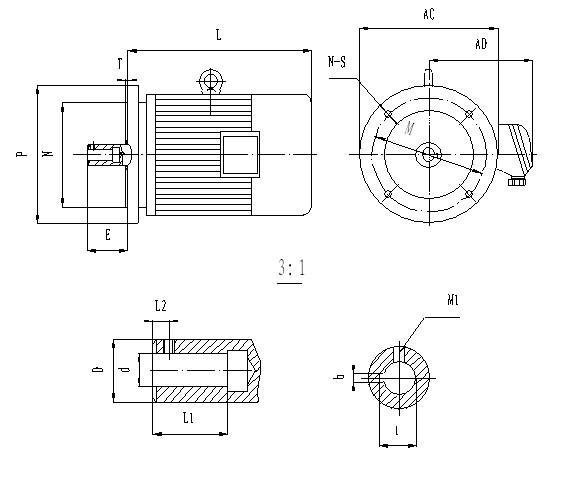

YZYE直联式外形及安装尺寸图 (2)
Mounting Dimension and Data for YZYE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (2)

机座号 Frame Size	安装尺寸 Mounting Dimensions (mm)													外形尺寸 Outling Dimensions (mm)
机座号 Frame Size	D	d	b	t	L2	L1	M1	E	T	M	N	P	N-S	AC	AD	L
71	30	12	5	14.3	8	21	4	35	3	100	80	120	4-φ6.5	145	130	355
80	30	12	5	14.3	8	23	4	45	3	100	80	120	4-φ6.5	170	150	355
90	30	14	5	16.3	8	21	4	35	3.5	130	110	160	4-φ9	180	155	395
100	40	16	5	18.3	8	23	5	45	3.5	130	110	160	4-φ9	210	180	430
112	40	18	6	20.8	8	26	5	53	3.5	165	130	200	4-φ11	230	190	440
132	45	22	8	25.3	10	32	5	63	4	215	180	250	4-φ13.5	270	210	565
160	55	28	8	31.3	10	36	6	72	4	265	230	300	4-φ13.5	330	255	675
180	65	32	10	35.3	10	47	6	86	5	300	250	350	4-φ17.5	360	285	750
200	70	38	12	41.3	15	55	8	94	5	350	300	400	6-φ17.5	400	310	795
225	70	38	12	41.3	15	55	8	94	5	400	350	450	6-φ22	450	345	910
250	85	48	14	51.8	15	60	8	113	5	500	450	550	6-φ22	500	385	955

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Note: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
