YZP系列冶金及起重机用变频调速三相异步电动机是专为冶金及起重机械设计的。本电机频率在5Hz-50Hz(或60Hz)范围内作恒转矩调速运行,大于50Hz(或60Hz)-100Hz(120Hz)范围内作恒功率调速运行。电动机从低频到高频不仅运转平稳,而且无转矩脉动现象,并具有较低的运行噪声和较高的起动转矩及较小的起动电源。能和国内外各种变频装置相配套,从而构成交流变频无极调速系统,该系统与其他调速方式比具有节能效果明显,调速性能好,调速比宽,快速响应性优良等优点,是目前交流调速方案中最先进系统之一。
YZP系列电动机由冶金及起重机用变频调速三相异步电动机附加冷却风机组合而成。电动机的功率等级,机座中心高的对应关系和安装尺寸均同Y系列同规格电机。冷却风机是特殊三相异步电动机(380V,50HZ)和风扇组成,具有冷却效果高,噪声低,结构紧凑等优点。
本系列变频电机可制成直联式结构,安装型式和尺寸参见直联式安装表。
本系列变频电机可以按用户提供的图纸设计并制造。
YZP Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Motor for Metallurgy and Crane Applications is for metallurgy and crane applications. YZP series motor can operate with the constant torque at different speeds, such as range of 5HZ to 60HZ, or with the constant power at different speeds, such as range of 50HZ to 120HZ. The motor runs steadily and smoothly regardless of changing frequencies from low to high or vice versa. The torque of motors has higher pull-up, no pulsation, and low operational noise. With the latest design, the series motor is equipped to have the large overload capacity, energy saving (smaller starting power source), high mechanical strength and are durable. Moreover, the series motor has attached a cooling system, which enables them running effectively and constantly. It is capable to drive various types of metallurgical machines and cranes and / or other similar equipments. In addition, the series motor is light weight and easy to install. It is the popular AC motors to have frequency conversion as well as speed conversion.
The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.
Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.
The motor can be customized designed and produced to meet your request.

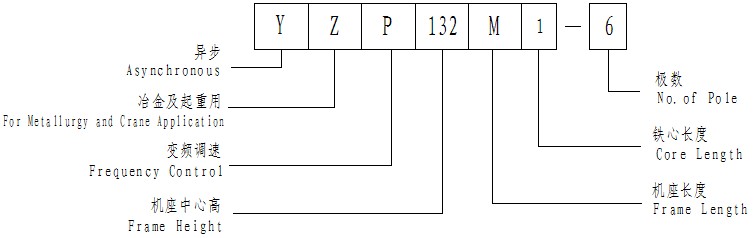

额定功率 Rated Output (KW) | 4极 4 pole | 6极 6 pole | 8极 8 pole | ||||||
机座号 Frame Size | 额定转矩 Rate Torque (N.m) | 电流 Current (A) | 机座号 Frame Size | 额定转矩 Rate Torque (N.m) | 电流 Current (A) | 机座号 Frame Size | 额定转矩 Rate Torque (N.m) | 电流 Current (A) | |
0.18 | 71 | 1.14 | 0.65 | ||||||
0.25 | 71 | 1.58 | 0.86 | 71 | 2.39 | 1 | |||
0.37 | 71 | 2.4 | 1.3 | 801 | 3.53 | 1.5 | |||
0.55 | 801 | 3.5 | 1.8 | 802 | 5.25 | 2 | |||
0.75 | 802 | 4.7 | 2.3 | 90S | 7 | 2.5 | |||
1.1 | 90S | 7 | 3 | 90L | 10.5 | 3.5 | |||
1.5 | 90L | 9.5 | 4.2 | 100L | 14 | 4.5 | |||
2.2 | 100L1 | 14 | 5.5 | 112M | 21 | 6 | 132S | 28 | 6.4 |
3 | 100L2 | 19 | 7.5 | 132S | 28 | 8 | 132M | 38 | 8.5 |
4 | 112M | 25 | 9.6 | 132M1 | 37 | 10 | 160M1 | 50 | 10.8 |
5.5 | 132S | 35 | 12 | 132M2 | 52 | 14 | 160M2 | 70.5 | 14.5 |
7.5 | 132M | 47.5 | 17 | 160M | 71 | 19 | 160L | 95 | 19.4 |
11 | 160M | 70 | 25 | 160L | 105 | 27 | 180L | 140 | 24.5 |
15 | 160L | 95 | 33 | 180L | 142 | 35 | 200L | 190 | 35.8 |
18.5 | 180M | 117 | 38 | 200L1 | 176 | 40 | 225S | 236 | 42 |
22 | 180L | 140 | 45 | 200L2 | 210 | 47 | 225M | 280 | 49 |
30 | 200L | 190 | 60 | 225M | 287 | 62 | 250M | 382 | 64 |
37 | 225S | 236 | 72 | 250M | 353 | 74 | |||
45 | 225M | 286 | 88 | ||||||
55 | 250M | 350 | 107 |
YZP工作方式:连续(S1) YZP duty: Continuous (S1)

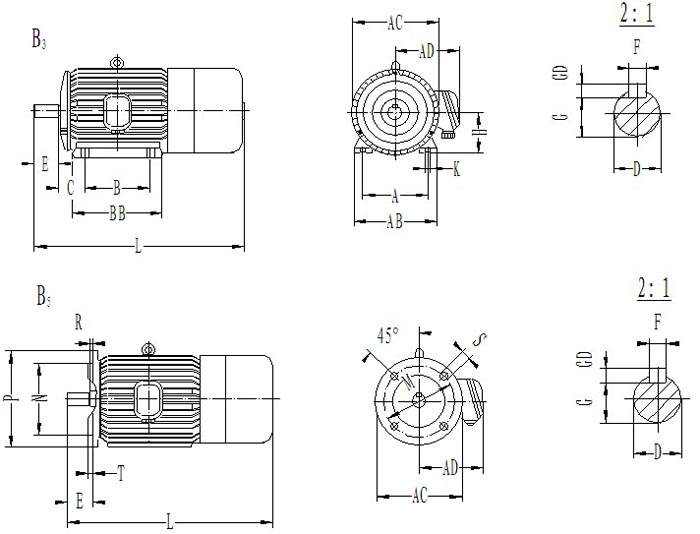

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outling Dimensions (mm) | ||||||||||||||||||
H | A | B | C | D | E | FxGD | G | K | R | T | M | N | P | S | AB | BB | AC | AD | L | |
71 | 71 | 112 | 90 | 45 | 14 | 30 | 5x5 | 11 | 4-φ7 | 0 | 4 | 130 | 110 | 160 | 4-φ10 | 145 | 130 | 150 | 130 | 325 |
80 | 80 | 125 | 100 | 50 | 19 | 40 | 6x6 | 15.5 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 160 | 130 | 170 | 150 | 335 |
90S | 90 | 140 | 100 | 56 | 24 | 50 | 8x7 | 20 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 180 | 130 | 180 | 155 | 360 |
90L | 90 | 140 | 125 | 56 | 24 | 50 | 8x7 | 20 | 4-φ10 | 0 | 4 | 165 | 130 | 200 | 4-φ12 | 180 | 155 | 180 | 155 | 385 |
100L | 100 | 160 | 140 | 63 | 28 | 60 | 8x7 | 24 | 4-φ12 | 0 | 4 | 215 | 180 | 250 | 4-φ15 | 205 | 176 | 210 | 180 | 440 |
112M | 112 | 190 | 140 | 70 | 32 | 80 | 10x8 | 27 | 4-φ12 | 0 | 4 | 215 | 180 | 250 | 4-φ15 | 245 | 180 | 235 | 190 | 470 |
132S | 132 | 216 | 140 | 89 | 38 | 80 | 10x8 | 33 | 4-φ12 | 0 | 4 | 265 | 230 | 300 | 4-φ15 | 280 | 200 | 275 | 210 | 565 |
132M | 132 | 216 | 178 | 89 | 38 | 80 | 10x8 | 33 | 4-φ12 | 0 | 4 | 265 | 230 | 300 | 4-φ15 | 280 | 238 | 275 | 210 | 605 |
160M | 160 | 254 | 210 | 108 | 48 | 110 | 14x9 | 42.5 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 325 | 270 | 330 | 255 | 730 |
160L | 160 | 254 | 254 | 108 | 48 | 110 | 14x9 | 42.5 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 325 | 314 | 330 | 255 | 775 |
180M | 180 | 279 | 241 | 121 | 55 | 110 | 16x10 | 49 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 355 | 311 | 360 | 285 | 795 |
180L | 180 | 279 | 279 | 121 | 55 | 110 | 16x10 | 49 | 4-φ15 | 0 | 5 | 300 | 250 | 350 | 4-φ19 | 355 | 349 | 360 | 285 | 850 |
200L | 200 | 318 | 305 | 133 | 60 | 140 | 18x11 | 53 | 4-φ19 | 0 | 5 | 400 | 350 | 450 | 8-φ19 | 395 | 379 | 405 | 310 | 935 |
225S | 225 | 356 | 286 | 149 | 65 | 140 | 18x11 | 58 | 4-φ19 | 0 | 5 | 400 | 350 | 450 | 8-φ19 | 435 | 368 | 455 | 345 | 1055 |
225M | 225 | 356 | 311 | 149 | 65 | 140 | 18x11 | 58 | 4-φ19 | 0 | 5 | 400 | 350 | 450 | 8-φ19 | 435 | 393 | 455 | 345 | 1070 |
250M | 250 | 406 | 349 | 168 | 70 | 140 | 20x12 | 62.5 | 4-φ24 | 0 | 5 | 500 | 450 | 550 | 8-φ19 | 490 | 455 | 505 | 385 | 1155 |

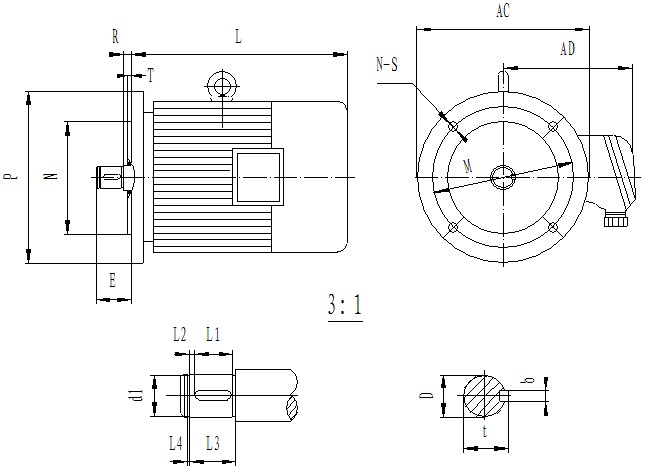

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outling Dimensions (mm) | ||||||||||||||||
D | E | b | t | L1 | L2 | L3 | L4 | d1 | R | T | M | N | P | N-S | AC | AD | L | |
71 | 16 | 35 | 5 | 18 | 15 | 1.5 | 18 | 1.1 | 15.2 | 13 | 3 | 100 | 80 | 120 | 4-φ6.5 | 145 | 130 | 295 |
80 | 16 | 45 | 5 | 18 | 18 | 1 | 20 | 1.1 | 15.2 | 21 | 3 | 100 | 80 | 120 | 4-φ6.5 | 170 | 150 | 305 |
90 | 18 | 35 | 6 | 20.5 | 15 | 1.5 | 18 | 1.1 | 17 | 13 | 3.5 | 130 | 110 | 160 | 4-φ9 | 180 | 155 | 355 |
100 | 22 | 45 | 8 | 25 | 18 | 1 | 20 | 1.1 | 21 | 21 | 3.5 | 130 | 110 | 160 | 4-φ9 | 210 | 180 | 400 |
112 | 28 | 53 | 8 | 31 | 20 | 1.5 | 23 | 1.3 | 26.6 | 26 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 4200 |
132 | 32 | 63 | 10 | 35 | 25 | 2 | 29 | 1.3 | 30.3 | 28 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 540 |
160 | 38 | 72 | 12 | 41 | 30 | 2.2 | 35 | 1.7 | 36 | 31 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 705 |
180 | 48 | 86 | 14 | 51.5 | 40 | 1 | 42 | 1.7 | 45.5 | 37 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 800 |
200 | 55 | 94 | 16 | 59 | 45 | 2.5 | 50 | 2.2 | 52 | 36 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 900 |
225 | 55 | 94 | 16 | 59 | 45 | 2.5 | 50 | 2.2 | 52 | 36 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 985 |
250 | 68 | 113 | 20 | 72.5 | 50 | 2.5 | 55 | 2.7 | 65 | 52 | 5 | 500 | 450 | 550 | 6-φ22 | 500 | 385 | 1050 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 形 尺 寸 Outling Dimensions (mm) | ||||||||||||||
D | d | b | t | L2 | L1 | M1 | E | T | M1 | N | P | N-S | AC | AD | L | |
71 | 40 | 14 | 5 | 16.3 | 8 | 21 | 4 | 35 | 3 | 100 | 80 | 120 | 4-φ6.5 | 145 | 130 | 295 |
80 | 40 | 14 | 5 | 16.3 | 8 | 23 | 4 | 45 | 3 | 100 | 80 | 120 | 4-φ6.5 | 170 | 150 | 305 |
90 | 40 | 16 | 5 | 18.3 | 8 | 21 | 4 | 35 | 3.5 | 130 | 110 | 160 | 4-φ9 | 180 | 155 | 355 |
100 | 45 | 18 | 6 | 20.8 | 8 | 23 | 5 | 45 | 3.5 | 130 | 110 | 160 | 4-φ9 | 210 | 180 | 400 |
112 | 45 | 22 | 8 | 25.3 | 8 | 26 | 5 | 53 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 4200 |
132 | 55 | 28 | 8 | 31.3 | 10 | 32 | 5 | 63 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 540 |
160 | 65 | 32 | 10 | 35.3 | 10 | 36 | 6 | 72 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 705 |
180 | 70 | 38 | 12 | 41.3 | 10 | 47 | 6 | 86 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 800 |
200 | 85 | 48 | 14 | 51.8 | 15 | 55 | 8 | 94 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 900 |
225 | 85 | 48 | 14 | 51.8 | 15 | 55 | 8 | 94 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 985 |
250 | 100 | 55 | 16 | 59.3 | 15 | 60 | 8 | 113 | 5 | 500 | 450 | 550 | 6-φ22 | 500 | 385 | 1050 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
