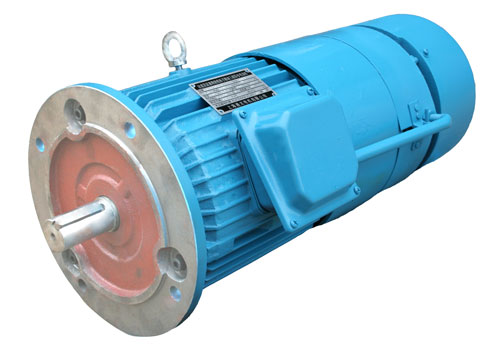

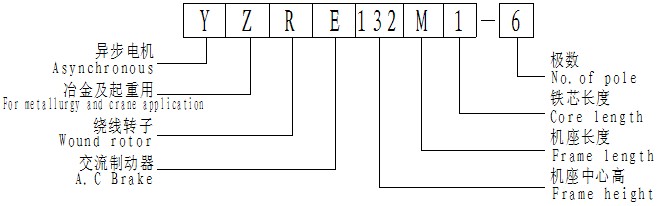

YZRE系列冶金及起重用绕线转子制动三相异步电动机是YZR系列电动机和交流制动器二合一的产品,具有无轴向串动,制动力矩可从零调到需要值,还具有结构紧凑、体积小、重量轻、安装调整方便等优点。
YZRE系列电动机特别适用于驱动各种类型的冶金及起重机械或其他类似设备。
交流制动器由三相380V电源直接供电,由于无二极管整流,因此大幅度提高电机可靠性和使用寿命。
该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。
本系列变频电机可制成直联式结构,安装型式和尺寸参见直联式安装表。
本系列变频电机可以按用户提供的图纸设计并制造。
YZR Series 3-Phase Wound-Rotor Asynchronous Motor for Metallurgy and Crane Applications is the latest design and features with the large overload capacity and high mechanical strength.
While YZRE Series 3-Phase Wound-Rotor Asynchronous Motor with Brake for Metallurgy and Crane Applications is the YZR series motor toped up with an AC brake. The AC brake is powered directly from a three phase power supply without rectified diodes. The AC brakes are not only quick response braking (100 times quicker than a DC single phase brake) but also have improved reliability and long service life. The advantages of AC brakes also include precise positioning, such as no axial movements, and the capability of a wide adjustable range of braking torque, such as from zero (0) to any desired values. The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.
YZR and YZRE series motors are especially suitable for driving various types of metallurgical machines and cranes and / or other similar equipments. These series motors are light weight and easy to install.
The motor has been also awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.
Above series motors are available in the direct connection between the motor and the gearbox. Please refer to tables below for details.
These series motors can be customized designed and produced to meet your request.
. | S3 | |||||||||||||||||||||||
6次/时 6 starts per hour | ||||||||||||||||||||||||
. . | 25% | 40% | 60% | |||||||||||||||||||||
技术参数Technical Data 型号 Type | 额定功率 Rated power | 额定电流 Rated current | 额定转子电流 Rated Rotor Current | 转速 Speed | 额定功率Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 最大转矩 Max Torque 额定转矩 Rated Torque | YZRE系列电机制动力矩 Braking Torque of Series YZRE Motor | 空载电流 No Load Current | 转速 Speed | 效率 Efficiency | 功率因素 Power Factor | 额定功率Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed | |||||||
(KW | (A) | (A) | (r/min) | (KW) | (A) | (A) | (times) | (N.m) | (A) | (r/min) | (%) | cosψ | (KW) | (A) | (A) | (r/min) | ||||||||
1500 r/min | ||||||||||||||||||||||||
112M1-4 | 0.95 | 2.8 | 9.6 | 1380 | 0.8 | 2.4 | 8 | 2.5 | 0-10 | 1.4 | 1400 | 65 | 0.8 | 0.58 | 1.6 | 5.6 | 1420 | |||||||
112M2-4 | 1.8 | 5.3 | 13 | 1400 | 1.5 | 4.5 | 12.5 | 2.5 | 0-10 | 2 | 1410 | 68 | 0.79 | 1.1 | 3.7 | 7.3 | 1430 | |||||||
112M3-4 | 2.5 | 6.5 | 12 | 1400 | 2.2 | 6 | 12.6 | 2.5 | 0-15 | 3 | 1410 | 72 | 0.76 | 1.8 | 5.4 | 9 | 1430 | |||||||
132M1-4 | 4 | 9.7 | 14 | 1400 | 3.7 | 9.2 | 14.5 | 2.7 | 0-20 | 4 | 1410 | 77 | 0.77 | 3 | 7.9 | 10 | 1430 | |||||||
132M2-4 | 6.3 | 16 | 29 | 1400 | 5.5 | 15 | 25.7 | 2.7 | 0-25 | 5 | 1410 | 77 | 0.78 | 5 | 14 | 22 | 1430 | |||||||
132M3-4 | 8.5 | 19 | 29 | 1410 | 7.5 | 17 | 26.5 | 3 | 0-40 | 7.5 | 1420 | 80 | 0.82 | 6.3 | 15 | 21 | 1450 | |||||||
160M1-4 | 8.5 | 19 | 29 | 1410 | 7.5 | 17 | 26.5 | 3 | 0-40 | 8 | 1420 | 80 | 0.82 | 6.3 | 15 | 21 | 1450 | |||||||
160M2-4 | 13 | 29 | 32 | 1410 | 11 | 24.5 | 27.6 | 3 | 0-55 | 10 | 1420 | 82 | 0.83 | 9 | 20 | 22 | 1450 | |||||||
160L-4 | 17 | 36 | 49 | 1410 | 15 | 33 | 46 | 3 | 0-55 | 13 | 1420 | 85 | 0.83 | 13 | 29 | 37 | 1450 | |||||||
180M-4 | 21 | 43 | 58 | 1420 | 18.5 | 38 | 52 | 3 | 0-110 | 16 | 1430 | 87 | 0.83 | 16 | 32 | 44 | 1460 | |||||||
180L-4 | 25 | 50 | 70 | 1420 | 22 | 45 | 62 | 3 | 0-110 | 18 | 1430 | 88 | 0.835 | 18.5 | 38 | 50 | 1460 | |||||||
200L-4 | 34 | 72 | 100 | 1420 | 30 | 64 | 89 | 3 | 0-160 | 22 | 1430 | 88.5 | 0.84 | 25 | 55 | 72 | 1460 | |||||||
225S-4 | 42 | 88 | 122 | 1420 | 37 | 78 | 108 | 3 | 0-190 | 26 | 1430 | 88.5 | 0.84 | 32 | 67 | 88 | 1460 | |||||||
225M-4 | 51 | 100 | 125 | 1420 | 45 | 90 | 111 | 3 | 0-190 | 28 | 1430 | 89 | 0.84 | 38 | 77 | 91 | 1460 | |||||||
1000 r/min | ||||||||||||||||||||||||
112M3-6 | 1.8 | 5.3 | 13 | 850 | 1.5 | 4.6 | 12.5 | 2.2 | 0-10 | 2.5 | 866 | 62 | 0.7 | 1.1 | 3.8 | 7.3 | 912 | |||||||
132M1-6 | 2.5 | 6.5 | 12 | 892 | 2.2 | 6.7 | 12.6 | 2.9 | 0-15 | 3.5 | 908 | 72 | 0.7 | 1.8 | 5.4 | 9 | 924 | |||||||
132M2-6 | 4 | 9.7 | 14 | 900 | 3.7 | 9.2 | 14.5 | 3.5 | 0-25 | 5 | 908 | 77 | 0.8 | 3 | 7.9 | 10 | 937 | |||||||
160M1-6 | 6.3 | 16 | 29 | 921 | 5.5 | 15 | 25.7 | 2.6 | 0-40 | 6 | 930 | 75 | 0.7 | 5 | 14 | 22 | 935 | |||||||
160M2-6 | 8.5 | 19 | 30 | 930 | 7.5 | 18 | 26.5 | 2.8 | 0-55 | 8 | 940 | 79 | 0.8 | 6.3 | 16 | 21 | 949 | |||||||
160L-6 | 13 | 29 | 32 | 942 | 11 | 24.9 | 27.6 | 2.5 | 0-80 | 11 | 945 | 84 | 0.8 | 9 | 21 | 22 | 952 | |||||||
180L-6 | 17 | 36 | 50 | 950 | 15 | 34 | 47 | 2.7 | 0-110 | 16 | 960 | 86 | 0.8 | 13 | 29 | 38 | 960 | |||||||
200L-6 | 26 | 56 | 82 | 950 | 22 | 49 | 69 | 2.8 | 0-160 | 20 | 960 | 87 | 0.8 | 19 | 44 | 60 | 960 | |||||||
225M-6 | 35 | 72 | 104 | 955 | 30 | 62 | 87 | 2.8 | 0-200 | 26 | 965 | 88 | 0.81 | 26 | 54 | 73 | 965 |
. | S4 | |||||||||||
150次/时 150 Starts Hour | ||||||||||||
. . | 25% | 40% | 60% | |||||||||
技术参数 Technical Data 型号 Type | 额定功率 Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed | 额定功率 Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed | 额定功率 Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed |
(KW) | (A) | (A) | (r/min) | (KW) | (A) | (A) | (r/min) | (KW) | (A) | (A) | (r/min) | |
1500 r/min | ||||||||||||
112M1-4 | 0.85 | 2.5 | 8.5 | 1400 | 0.7 | 2.1 | 6.9 | 1410 | 0.53 | 1.65 | 5 | 1420 |
112M2-4 | 1.6 | 4.7 | 13 | 1410 | 1.3 | 4.2 | 8.5 | 1420 | 1 | 3.5 | 6 | 1430 |
112M3-4 | 2.2 | 6 | 11.2 | 1420 | 2 | 5.7 | 10 | 1425 | 1.7 | 5.3 | 8 | 1440 |
132M1-4 | 3.7 | 9.7 | 13.1 | 1420 | 3.3 | 9.2 | 11.2 | 1425 | 2.8 | 8.5 | 9.6 | 1440 |
132M2-4 | 5.8 | 15.5 | 27 | 1420 | 5 | 14 | 23 | 1430 | 4.8 | 13 | 22 | 1450 |
132M3-4 | 7.5 | 17 | 28 | 1420 | 7 | 16 | 25.5 | 1430 | 6 | 15 | 21 | 1460 |
160M1-4 | 7.5 | 17 | 28 | 1420 | 7 | 16 | 25.5 | 1430 | 6 | 15 | 21 | 1460 |
160M2-4 | 11 | 28 | 28.5 | 1420 | 10 | 23 | 25 | 1430 | 8 | 19 | 19 | 1460 |
160L-4 | 15 | 33 | 43 | 1420 | 13 | 29 | 37 | 1430 | 12 | 26 | 34 | 1460 |
180M-4 | 19.5 | 40 | 55 | 1430 | 16 | 33 | 45 | 1435 | 15 | 30.8 | 41 | 1455 |
180L-4 | 23.3 | 47 | 65 | 1430 | 19 | 39 | 53 | 1435 | 17 | 36 | 49 | 1455 |
200L-4 | 31 | 67 | 94 | 1430 | 26 | 55 | 77 | 1435 | 24 | 51 | 71 | 1455 |
225S-4 | 39 | 82 | 114 | 1430 | 32 | 67 | 93 | 1435 | 29 | 62 | 86 | 1455 |
225M-4 | 47.7 | 95 | 117 | 1430 | 39 | 78 | 96 | 1435 | 36 | 72 | 88 | 1455 |
1000 r/min | ||||||||||||
112M3-6 | 1.6 | 4.75 | 11.3 | 845 | 1.3 | 4.2 | 8.85 | 890 | 1 | 3.75 | 6.57 | 920 |
132M1-6 | 2.2 | 6 | 11.2 | 908 | 2 | 5.7 | 10 | 913 | 1.7 | 5.3 | 8.4 | 931 |
132M2-6 | 3.7 | 9.7 | 13.1 | 915 | 3.3 | 9.2 | 11.2 | 925 | 2.8 | 8.5 | 9.65 | 940 |
160M1-6 | 5.8 | 15.5 | 27.3 | 927 | 5 | 14.1 | 23.4 | 935 | 4.8 | 13.8 | 22.7 | 937 |
160M2-6 | 7.5 | 18 | 27.6 | 940 | 7 | 17.1 | 25.6 | 945 | 6 | 15.6 | 21.8 | 954 |
160L-6 | 11 | 28.5 | 27.8 | 950 | 10 | 23 | 25 | 957 | 8 | 19.5 | 19.8 | 968 |
180L-6 | 15 | 34 | 42 | 960 | 13 | 30 | 38 | 965 | 12 | 28 | 36 | 970 |
200L-6 | 21 | 47 | 55 | 960 | 18.5 | 48 | 42 | 970 | 17 | 40 | 53 | 970 |
225M-6 | 32 | 66 | 92 | 960 | 26 | 53 | 75 | 970 | 23 | 47 | 66 | 970 |
. | S2 | 开路电压 Open Voltage | 飞轮转矩 Flywheel Torque | 重量 Weight | |||||||||
. . | 30min | 60min | |||||||||||
技术参数 Technical Data 型号 Type | 额定功率 Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed | 额定功率 Rated Power | 额定电流 Rated Current | 额定转子电流 Rated Rotor Current | 转速 Speed | |||||
YZRE | YZR | YZRE | YZR | ||||||||||
(KW) | (A) | (A) | (r/min) | (KW) | (A) | (A) | (r/min) | (V) | (Kg.M2) | (Kg) | |||
1500 r/min | |||||||||||||
112M1-4 | 0.95 | 2.8 | 9.6 | 1380 | 0.8 | 2.4 | 8 | 1400 | 100 | 0.14 | 0.12 | 50.5 | 45 |
112M2-4 | 1.8 | 5.3 | 13 | 1400 | 1.5 | 4.5 | 12 | 1410 | 100 | 0.16 | 0.13 | 64.5 | 58 |
112M3-4 | 2.5 | 6.5 | 12 | 1400 | 2.2 | 6 | 12 | 1410 | 132 | 0.18 | 0.15 | 89.5 | 81 |
132M1-4 | 4 | 9.7 | 14 | 1400 | 3.7 | 9.2 | 14 | 1410 | 187 | 0.29 | 0.27 | 101 | 91 |
132M2-4 | 6.3 | 16 | 29 | 1400 | 5.5 | 15 | 25 | 1410 | 139 | 0.35 | 0.31 | 109 | 98 |
132M3-4 | 8.5 | 19 | 29 | 1410 | 7.5 | 17 | 26 | 1420 | 185 | 0.4 | 0.34 | 119 | 107 |
160M1-4 | 8.5 | 19 | 29 | 1410 | 7.5 | 17 | 26 | 1420 | 185 | 0.44 | 0.49 | 141 | 127 |
160M2-4 | 13 | 28 | 32 | 1410 | 11 | 24 | 27 | 1420 | 252 | 0.54 | 0.52 | 165 | 149 |
160L-4 | 17 | 36 | 49 | 1410 | 15 | 33 | 46 | 1420 | 218 | 0.56 | 0.53 | 193 | 174 |
180M-4 | 21 | 43 | 58 | 1420 | 18.5 | 38 | 52 | 1430 | 222 | 0.59 | 0.61 | 220 | 209 |
180L-4 | 25 | 50 | 70 | 1420 | 22 | 45 | 62 | 1430 | 212 | 0.66 | 0.65 | 223 | 212 |
200L-4 | 39 | 72 | 100 | 1420 | 30 | 64 | 89 | 1430 | 205 | 2.76 | 2.4 | 298 | 284 |
225S-4 | 42 | 88 | 122 | 1420 | 37 | 78 | 108 | 1430 | 215 | 2.9 | 2.6 | 364 | 347 |
225M-4 | 51 | 100 | 125 | 1420 | 45 | 90 | 111 | 1430 | 255 | 3.6. | 3.2 | 369 | 351 |
1000 r/min | |||||||||||||
112M3-6 | 1.8 | 5.3 | 13.4 | 815 | 1.5 | 4.6 | 12 | 866 | 100 | 0.13 | 0.13 | 88.5 | 80 |
132M1-6 | 2.5 | 6.5 | 12.9 | 892 | 2.2 | 6.0 | 12 | 908 | 132 | 0.22 | 0.28 | 98 | 88 |
132M2-6 | 4 | 9.7 | 14.2 | 900 | 3.7 | 9.2 | 14 | 908 | 187 | 0.24 | 0.31 | 114 | 103 |
160M1-6 | 6.3 | 16 | 29.4 | 921 | 5.5 | 15 | 25 | 930 | 139 | 0.45 | 0.31 | 140 | 126 |
160M2-6 | 8.5 | 19 | 29.8 | 930 | 7.5 | 18 | 26 | 940 | 185 | 0.55 | 0.53 | 160 | 144 |
160L-6 | 13 | 28 | 31.6 | 942 | 11 | 24 | 27 | 957 | 252 | 0.76 | 0.55 | 186 | 168 |
180L-6 | 17 | 37 | 50 | 955 | 15 | 44 | 47 | 960 | 218 | 1.1 | 0.62 | 245 | 221 |
200L-6 | 26 | 56 | 82 | 955 | 22 | 49 | 69 | 960 | 200 | 2.5 | 0.66 | 335 | 302 |
225M-6 | 35 | 72 | 104 | 955 | 30 | 62 | 87 | 965 | 210 | 3.1 | 2.6 | 425 | 375 |

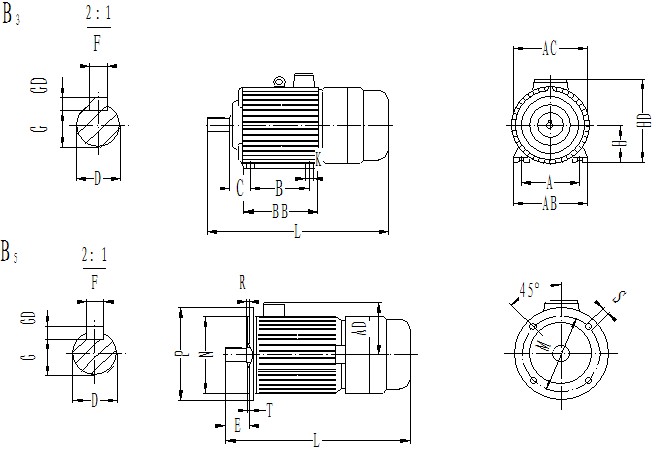

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions (mm) | 外 型 尺 寸 Outline Dimensions (mm) | |||||||||||||||||||
H | A | B | C | D | E | F | GD | K | M | N | P | S | T | R | AB | BB | AC | HD | L | ||
YZRE | YZR | ||||||||||||||||||||
112M | 112 | 190 | 140 | 70 | φ32 | 58 | 10 | 8 | 4~φ12 | 215 | 180 | 250 | 4~φ15 | 4 | 0 | 250 | 180 | 245 | 335 | 670 | 590 |
132M | 132 | 216 | 178 | 89 | φ38 | 58 | 10 | 8 | 4~φ15 | 265 | 230 | 300 | 4~φ15 | 4 | 0 | 275 | 238 | 285 | 365 | 730 | 645 |
160M | 160 | 254 | 210 | 108 | φ48 | 82 | 14 | 9 | 4~φ15 | 300 | 250 | 350 | 4~φ19 | 5 | 0 | 320 | 270 | 325 | 425 | 875 | 828 |
160L | 160 | 254 | 254 | 108 | φ48 | 82 | 14 | 9 | 4~φ15 | 300 | 250 | 350 | 4~φ19 | 5 | 0 | 320 | 314 | 325 | 425 | 920 | 872 |
180L | 180 | 279 | 279 | 121 | φ55 | 110 | 14 | 9 | 4~φ15 | 300 | 250 | 350 | 4~φ19 | 5 | 0 | 360 | 349 | 360 | 465 | 1010 | 915 |
200L | 200 | 318 | 305 | 133 | φ60 | 140 | 16 | 10 | 4~φ19 | 400 | 350 | 450 | 8~φ19 | 5 | 0 | 405 | 379 | 405 | 510 | 1110 | 1050 |
225M | 225 | 356 | 311 | 149 | φ65 | 140 | 16 | 10 | 4~φ19 | 400 | 350 | 450 | 8~φ19 | 5 | 0 | 455 | 393 | 430 | 545 | 1370 | 1110 |

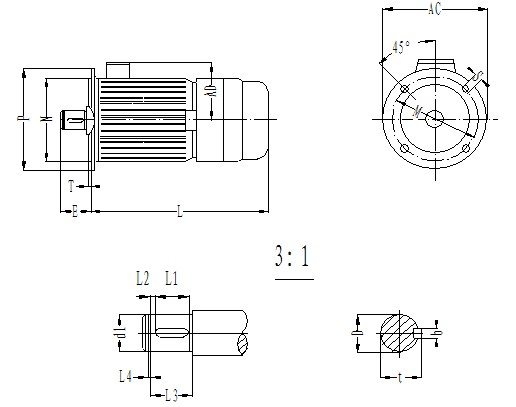

机座号 Frame Size | 安 装 尺 寸 Mounting Dimensions ( mm) | 外 形 尺 寸 Outling Dimensions (mm) | |||||||||||||||||
D | E | b | t | L1 | L2 | L3 | L4 | d1 | R | T | M | N | P | S | AC | AD | L | ||
YZRE | YZR | ||||||||||||||||||
112 | 22 | 53 | 8 | 25 | 20 | 1.5 | 23 | 1.1 | 21 | 26 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 670 | 590 |
132 | 28 | 63 | 8 | 31 | 25 | 2 | 29 | 1.3 | 26.6 | 28 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 730 | 645 |
160 | 32 | 72 | 10 | 35 | 30 | 2.2 | 35 | 1.3 | 30.3 | 31 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 920 | 872 |
180 | 38 | 86 | 12 | 41 | 40 | 1 | 42 | 1.7 | 36 | 37 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 1010 | 915 |
200 | 48 | 94 | 14 | 51.5 | 45 | 2.5 | 50 | 1.7 | 45.5 | 36 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 1110 | 1050 |
225 | 48 | 94 | 14 | 51.5 | 45 | 2.5 | 50 | 1.7 | 45.5 | 36 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 1370 | 1110 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

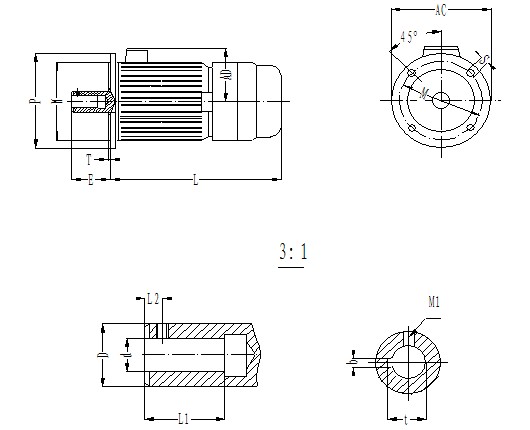

机座号 Frame Size |
安 装 尺 寸 Mounting Dimensions ( mm) |
外 形 尺 寸 Outling Dimensions (mm) | |||||||||||||||
D | d | b | t | L2 | L1 | M1 | E | T | M | N | P | S | AC | AD | L | ||
YZRE | YZR | ||||||||||||||||
112 | 40 | 18 | 6 | 20.8 | 8 | 26 | 5 | 53 | 3.5 | 165 | 130 | 200 | 4-φ11 | 230 | 190 | 670 | 590 |
132 | 45 | 22 | 8 | 25.3 | 10 | 32 | 5 | 63 | 4 | 215 | 180 | 250 | 4-φ13.5 | 270 | 210 | 730 | 645 |
160 | 55 | 28 | 8 | 31.3 | 10 | 36 | 6 | 72 | 4 | 265 | 230 | 300 | 4-φ13.5 | 330 | 255 | 920 | 872 |
180 | 65 | 32 | 10 | 35.3 | 10 | 47 | 6 | 86 | 5 | 300 | 250 | 350 | 4-φ17.5 | 360 | 285 | 1010 | 915 |
200 | 70 | 38 | 12 | 41.3 | 15 | 55 | 8 | 94 | 5 | 350 | 300 | 400 | 6-φ17.5 | 400 | 310 | 1110 | 1050 |
225 | 70 | 38 | 12 | 41.3 | 15 | 55 | 8 | 94 | 5 | 400 | 350 | 450 | 6-φ22 | 450 | 345 | 1370 | 1110 |
注:以上尺寸仅供参考,如要订货,请供方提供准确的安装尺寸。
Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
