YZPYE系列变频电机

YZPYE系列起重机运行用变频调速制动三相异步电动机 YZPYE SERIES THREE PHASE FREQUENCY CONVERSION AND VARIABLE SPEED ASYNCHRONOUS RUNNING MOTOR WITH BRAKE FOR METALLURGY AND CRANE APPLICATIONS

　　YZPYE系列电机为起重机运行用电机。

　　YZPYE系列电动机是分别由YZP系列电动机附加交流制动器组合而成，交流制动器无整流二极管，由三相380V电源直接供电。

通过相匹配的变频器同时使用，具有节约能源，运行速度变化范围宽，启动平稳，提高工作效率，运行可靠，使用寿命长，制动速度快，定位　　准确，制动力矩可从零调到需要值等优点。

　　该系列变频电机中自主研发交流制动器经推向市场获得广泛好评。

　　本系列变频电机可制成直联式结构，安装型式和尺寸参见直联式安装表。

　　本系列变频电机可以按用户提供的图纸设计并制造。

YZPYE Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Running Motor with Brake for Metallurgy and Crane Applications has similarity as YZP Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Motor for Metallurgy and Crane Applications. YZPYE series motor can operate with the constant torque at different speeds, such as range of 5HZ to 60HZ, or with the constant power at different speeds, such as range of 50HZ to 120HZ. The motor runs steadily and smoothly regardless of changing frequencies from low to high or vice versa. The torque of motors has higher pull-up, no pulsation, and low operational noise. With the latest design, the series motor is equipped to have the large overload capacity, energy saving (smaller starting power source), high mechanical strength and are durable. Moreover, the series motor has attached a cooling system, which enables them running effectively and constantly. It is capable to drive various types of metallurgical machines and cranes and / or other similar equipments. In addition, the series motor is light weight and easy to install. It is the popular AC motors to have frequency conversion as well as speed conversion.

The differences among YZP Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Motor for Metallurgy and Crane Applications, and YZPYE Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Running Motor with Brake for Metallurgy and Crane Applications are that YZP series motor has basic functions. Whereas, YZPYE series motor has some advanced features. YZPYE series motor has enhanced with an AC brake. The AC brake is powered directly from a three phase power supply without rectified diodes. The AC brakes are not only quick response braking (100 times quicker than a DC single phase brake) but also have improved reliability and long service life. The advantages of AC brakes also include precise positioning, such as no axial movements, and the capability of a wide adjustable range of braking torque, such as from zero (0) to any desired values. The AC brake is an approved patent from the National Patent Bureau. The approval patent number is: 97206492.3.

Future more, YZPYE Series 3-Phase Frequency Conversion and Variable Speed Asynchronous Running Motor with Brake for Metallurgy and Crane Applications is chiefly used for horizontal movements.

The motor has been awarded an approved patent from the National Patent Bureau with number of ZL 200820057339.5.

Above series motor is available in the direct connection between the motor and the gearbox. Please refer to tables below for details.

The motor can be customized designed and produced to meet your request.

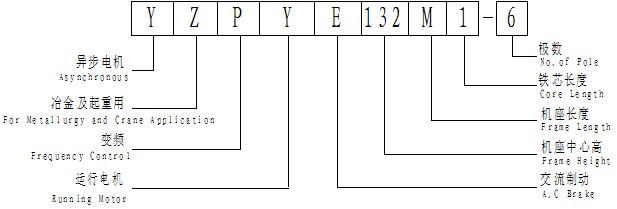

型号说明:TypeDesignation

YZPYE系列冶金及起重机运行用变频调速制动三相异步电动机技术参数： Data for YZPYE Series 3-phase Asynchronous Motor:

YZPYE工作方式：连续（S1） YZPYE duty: Continuous (S1)

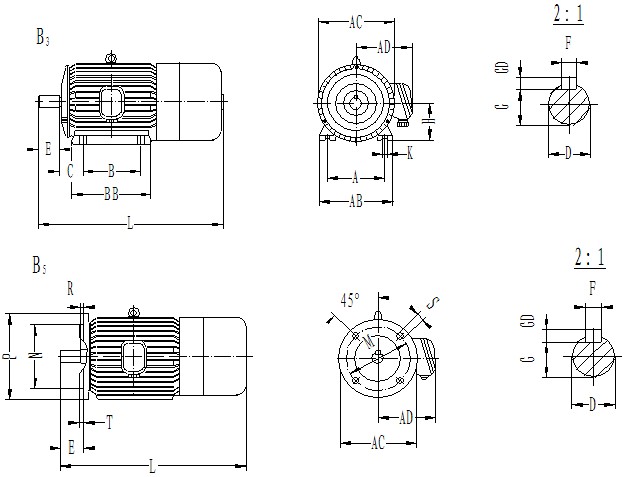

YZPYE外形及安装尺寸图Outline and Mounting Dimensions for YZPYE

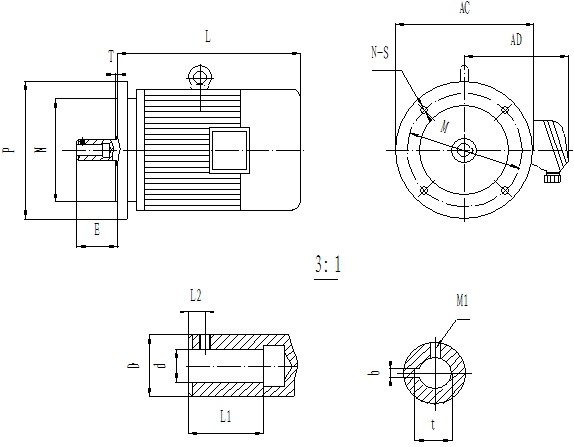

YZPYE直联式外形及安装尺寸图 (1) Mounting Dimension and Data for YZPYE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (1)

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.

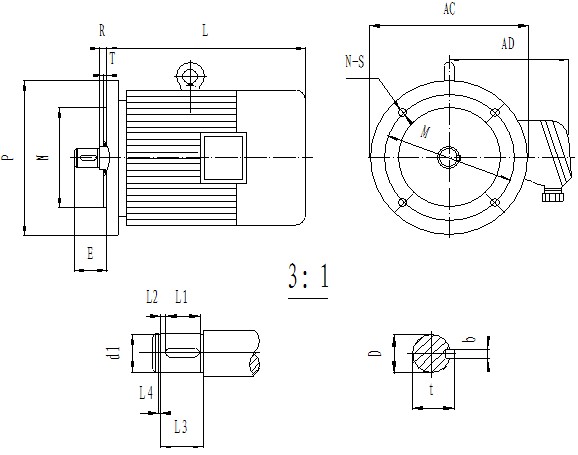

YZPYE直联式外形及安装尺寸图 (2) Mounting Dimension and Data for YZPYE Series 3-phase Motor in the Direct Connection between the Motor and the Gearbox (2)

注：以上尺寸仅供参考，如要订货，请供方提供准确的安装尺寸。

Notice: Above data is the example only. The company is able to design and produce any kind of motors and their components according to customer’s demands.
